点击放大查看

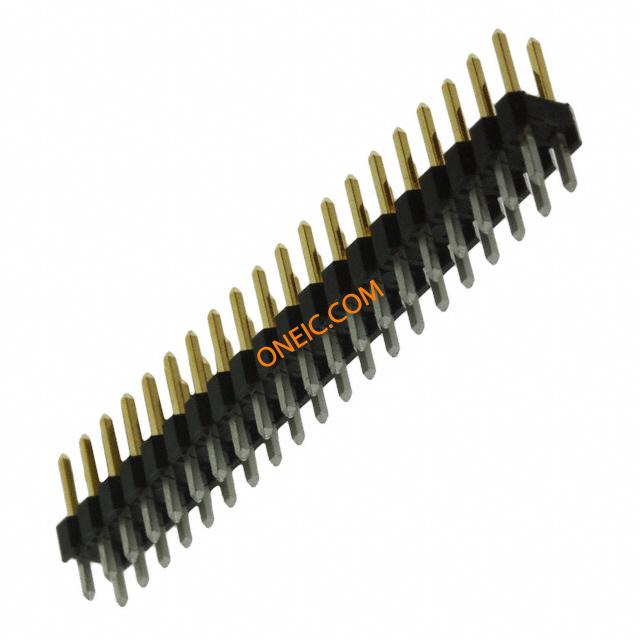

961240-6404-AR
| Manufacturer | |
| Description | Headers & Wire Housings 40P STRT 2 ROW GOLD 5.5MM MATING PIN CONN HEADER VERT DUAL 40POS GOLD BOARD TO BOARD, HEADER, 40POS, 2ROW Header;PinStrip;CopperAlloy;HighTempThermoplastic;40Cnts;DblRow;2A;Str;961Series 3M 961 系列 2.54mm节距 40路 (2排) 直 引脚管座, 焊接端接, 2A , 通孔 |
| Category |
商业参数
| 零件号别名 | 05111105537 DE500042283 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 600 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Gold |
| 排数 | 2 | 触头材料 | :Copper Alloy |
| 端接样式 | Through Hole | 触点数 | :40 |
| 接触件端接 | :Through Hole Vertical | 位数 | 40 |
| 接触长度 - 配合 | 0.220" (5.59mm) | 接触镀层厚度 | Flash |
产品信息
| 类型 | Pin Strip | 连接器性别 | :Header |
| 系列 | 961 | 产品子类型 | Headers |
| 加载位置数 | All | ||
