CHG-1010-001010-KEP
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 100 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | MIL-G-45204,QQ-N-290 |
| Approval Agency | cUL,UL | RoHS Compliance | Yes |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Color | Gray | Pitch | 0.100" (2.54mm) |
| Packaging | Bulk | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 22-24 AWG | Termination | IDC |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold | Number of Rows | 1 |
| Contact Material | CopperAlloy | Length - Overall | 1.025" |
| Primary Material | Wiremount | Cable Termination | IDC |
| Pin Hole Diameter | 0.1" | Number of Contacts | 10 |
| Dielectric Material | PBT | Insulation Diameter | 0.054" |
| Number of Positions | 10 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | CableSocket | Features | Closed End |
| Manufacturer | CHGSeries | ||
Environmental
| Operating Temperature | -55to+105°C | ||
Similar Parts
929400-01-10-RK
3M Electronic Solutions Division
$1.2845
Details
3624-41
3M Electronic Solutions Division
$7268.6560
Details
929647-03-10-I
3m interconnect solutions
$4.4690
Details
2310-5111-TG
3M Electronic Solutions Division
$2.6044
Details

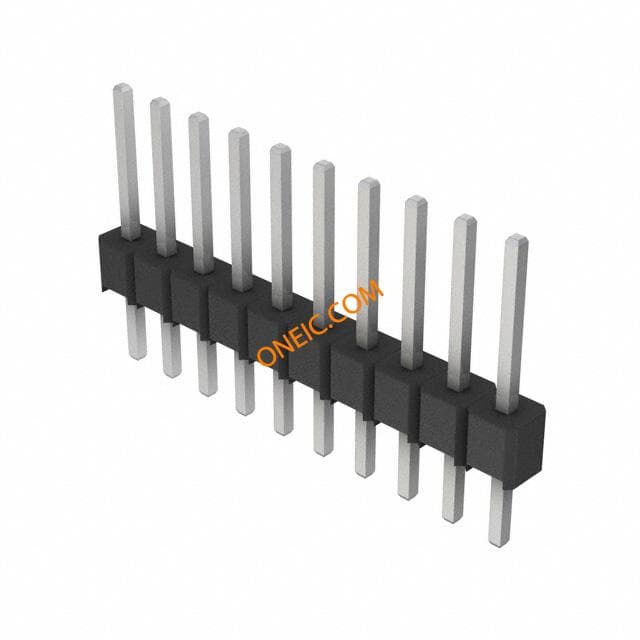

929400-01-10
3m interconnect solutions
$2.9172
Details
929550-01-10-EU
3m interconnect solutions
$4.0045
Details
929647-02-10-I
3m interconnect solutions
$4.4690
Details
3435-0
3M Electronic Solutions Division
$3.8400
Details

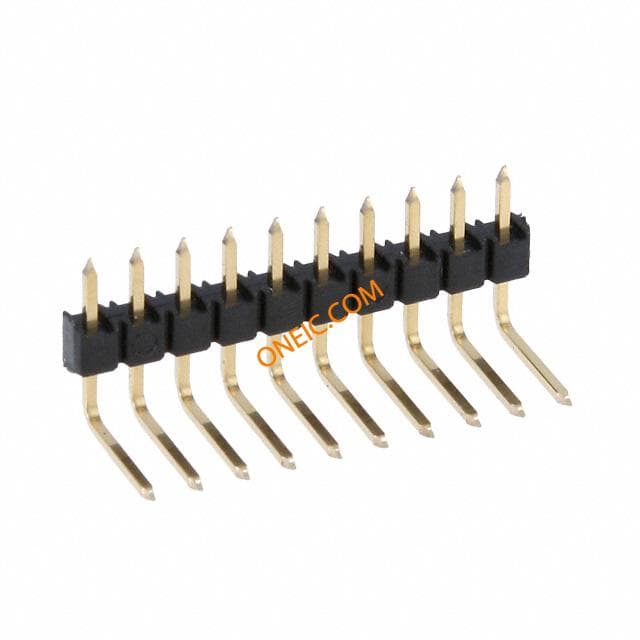

929550-01-10-I
