10120-3000PE
| Manufacturer | |
| Description | Conn SCSI PL 20 POS 2.54mm Solder Cup ST Cable Mount 20 Terminal 1 Port D-Sub Micro-D Connectors 2OP PLUG WIREMOUNT MDR Wiremount Plug, Solder, Shielded CONN MDR PLUG 20POS SLD CUP 20 way shielded I/O solder plug,1A MINI D RIBBON CONN, PLUG, 20POS, SOLDER Conn;D-Sub;Mini-D-Ribbon;CablePlug;20Pos;STR;101Series;Solder;30-24AWG;0.050In. Connector: MDR; plug; male; shielded; PIN:20; 1.27mm; 24÷30AWG; 1A MDR plug 20P, 10120-3000PE, 3M 3M 101 系列 电缆安装 20 路 焊接 D-sub 连接器 插头 , 1A |
| Category |
Business
| Part # Aliases | 54548623744945 54745239793 54862374494 JE150332821 JE150429981 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Standards | UL94V-0 |
| Tariff No | 85369010 | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage - Test | 0.5kV | Current Rating (Max) | 1 A |
| Contact Rating (Current) | 1A | Connector - Voltage Input | shielded |
Mechanical
| Depth | 19.3mm | Pitch | 2.54 mm |
| Width | 9.1mm | Length | 22mm |
| Weight | 0 | Packaging | Bulk |
| Wire Gauge | 30-24 | Termination | Solder Cup |
| Pitch - Post | 1.27mm | Body Material | polyester |
| Mounting Type | Cable Mount | Angle of Throw | Straight |
| Connector Type | Plug | Contact Finish | Gold |
| Mounting Style | Wire | Number of Rows | 2 |
| Connector Style | Center Strip Contacts | Insert Material | Polyester |
| Contact Material | Copper Alloy | Housing Material | Steel |
| Package Quantity | 100 | Primary Material | Mini-D-Ribbon |
| Connector - Cable | plug | Termination Style | Solder |
| Number of Contacts | 20 | Contact Termination | :Solder |
| Number of Positions | 20 | Contact Finish Thickness | 20µin (0.51µm) |
| Contact Material - Plating | nickel plated, gold plated | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 100 | Type | SCSI |
| Gender | PL | Series | :- |
| Features | Shielded | CAD Drawing | 3D CAD Model |
| Manufacturer | 101 | Number of Units | 1 |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
N10220-52B2PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 20POS R/A RECPT Receptacle MDR PCB 90deg 20 pin 3M MDR 102 系列 1.27mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10220-0210EC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 20POS IDC GOLD Plug IDC Panel Mount MDR Series 20 way PlugIDCPanelMountMDRSeries20way 3M 102 系列 1.27mm 节距 20 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳
10220-1210PE
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 20POS R/A SMD RECEPTACLE, MDR, SMT, 20WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,20CONTACTS Connector: MDR; socket; female; horizontal; shielded; PIN:20; 1A MDR socket 20P, 10220-1210PE, 3M
10220-55G3PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A M2.5 Socket MDR 102 Series SMT 20 way SOCKET, MDR, THT, RA, 30WAY SocketMDR102SeriesSMT20way 3M MDR 102 系列 1.27mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
3829
3M Electronic Solutions Division
Crimpers HAND PRESS TOOL HAND FOR MINI-D PLUG MiniDRibbon(MDR)IDCHandtoolKit(forterminatingcabletoMDRIDCplugs)
10220-6212PC
3m interconnect solutions
Conn SCSI RCP 20 POS 2.54mm Solder ST Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P VERT SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Vertical, Shielded CONN MDR RECPT 20POS VERT T/H Receptacle MDR PCB straight 20 pin .050 Mini D Ribbon Connector (20 Pos) Receptacle Vertical Boardmount Shielded .050MiniDRibbonConnector(20Pos)ReceptacleVerticalBoardmountShielded 3M MDR 102 系列 1.27mm 节距 20 路 直向 通孔安装 Micro-D 印刷电路板连接器 插座
10220-55H3PC
3m interconnect solutions
Conn SCSI RCP 20 POS 2.54mm Solder RA Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A 4-40 .050MiniDRibbon(MDR)20Pos.Thru-HoleRightAngleReceptacle-Shielded
10220-2210PE
3m interconnect solutions
Conn SCSI RCP 20 POS 1.27mm Solder ST SMD 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SMT SOCKET VERTICAL SHIELDED Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 20POS VERT RECPT 3M 102 Series 0.5in 20 Way 2 Row Right Angle PCB Socket Surface Mount RECEPTACLE, MDR, SMT, 20WAY Conn;D-Sub;Mini-D-Ribbon;CableSocket;20Pos;STR;102Series;SMT;.050In. 3M 102 系列 2行 20路 直角 12.7mm节距 表面贴装 印刷电路板插座

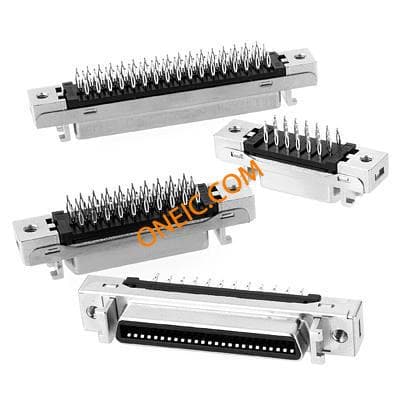

10220-R21TS
