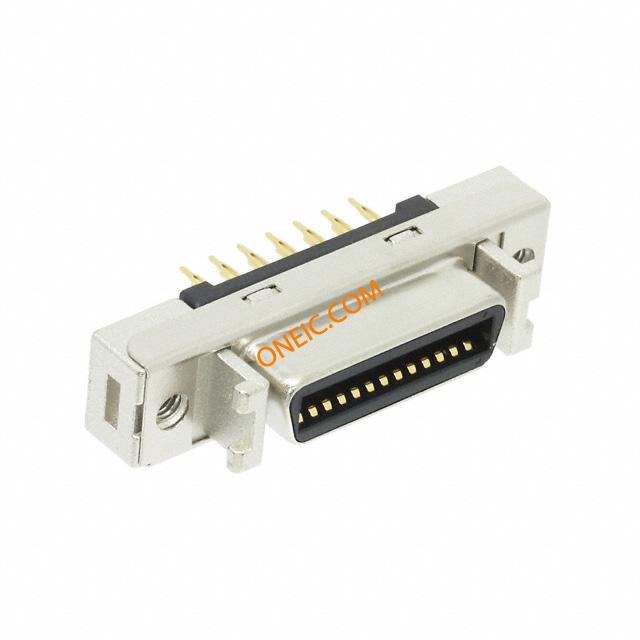

10226-R21TS
| Manufacturer | |
| Description | Conn SCSI RCP 26 POS 2.54mm Press Fit ST Thru-Hole 26 Terminal 1 Port D-Sub Micro-D Connectors 26P VERT SHLD RECEP BRDMNT COMPLIANT PIN Boardmount Receptacle, Compliant Pin, Vertical, Shielded CONN MINI-D 26POS VERT RECPT 0.050MiniDRibbonBoardMountCompliantPinVerticalReceptacle26positions |
| Category |
商业参数
| 零件号别名 | 51900163701 JE150266300 | 产品类别 | D-Sub Micro-D Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | RoHS Compliant | 标准 | UL94V-0 |
| 认证机构 | cUL,UL | RoHS合规（认证） | Yes |
| 材料阻燃等级 | UL94V-0 | ||
电气参数
| 最大额定电流 | 1 A | ||
机械参数
| 间距 | 2.54 mm | 重量 | 1 lb |
| 端接方式 | Press Fit | 安装类型 | Through Hole |
| 外壳镀层 | Nickel | 行程角度 | Straight |
| 连接器类型 | Receptacle | 接触镀层 | Nickel |
| 法兰特征 | Insert, Threaded (M2.5); Latchblocks | 外壳涂层 | Nickel |
| 安装样式 | Through Hole | 排数 | 2 |
| 连接器样式 | Outer Shroud Contacts | 插入件材料 | Polyester |
| 触头材料 | CopperAlloy | 壳体材料 | ZincAlloy |
| 主要材料 | Mini-D-Ribbon | 端接样式 | Solder |
| 触点数 | 26 | 介电材料 | PBT |
| 位数 | 26 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | SCSI | 连接器性别 | RCP |
| 产品特性 | Shielded | 制造商全称 | 102 |
