152220-0100-GB
| Manufacturer | |
| Description | Conn IDC Connector SKT 20 POS 2mm IDT RA Cable Mount Headers & Wire Housings 20P LO PRO SOCKET CONN 20POS 2MM IDC SOCKET 30AU Socket;Pak20Wiremount;1mmpitchcable;CopperAlloy;1A;1000V(RMS) |
| Category |
Business
| Part # Aliases | 05113843423 80610811319 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 125 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | ULListed,ULRecognized,cULRecognized,RoHSCompliant |
| Approval Agency | cUL,UL | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage - Rated | 1000V(RMS) | Current Rating (Max) | 1A |
| Insulation Resistance | >1x10^9Ohms | ||
Mechanical
| Color | Gray | Pitch | 2 mm |
| Plating | Gold | Packaging | Bulk |
| Wire Type | Ribbon Cable | Cable Exit | LowProfile |
| Wire Gauge | 28 AWG | Row Spacing | 0.079" (2.00mm) |
| Termination | IDT | Contact Type | Female Socket |
| Socket Depth | Pak20Wiremount | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | CopperAlloy |
| Housing Material | GlassFilledPolyester | Length - Overall | 0.99" |
| Primary Material | InterconnectSystem | Size / Dimension | 0.99in.Lx0.16in.Wx0.29in.H |
| Wire Termination | 28AWGStranded | Cable Termination | IDC |
| Pin Hole Diameter | 0.079" | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 20 |
| Number of Positions | 20 | Material - Insulation | GlassFilledPolyester(PBT) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 1522 | Features | Feed Through |
| Manufacturer | 1522Series | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | 1mmpitchcable | ||
Environmental
| Operating Temperature | -67to+221°F | Operating Temperature - Junction | +105°C |
Documents & Media
Similar Parts
155220-6403-RB
3m interconnect solutions
20/HDR/SCI L/STR/HT/.155/30U/ROHS CONN HEADER 2MM 20POS VERT .155" Headers & Wire Housings LATCH/EJECT HDR 20CONT.155SLDR TAIL
151220-7422-RB
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20PS 2MM HEADER R/A DL GOLD Headers & Wire Housings 20P R/A SOLDER TAIL
151220-8422-RB
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 20POS 2MM HEADER DUAL GOLD Headers & Wire Housings 20P STRT HDR .118 TAIL 30U AU BOARD-BOARD CONN, HEADER, 20WAY, 2ROW
151220-2420-TB
3m interconnect solutions
Conn Unshrouded Header HDR 20 POS 2mm Solder ST SMD Tray CONN HEADER 2MM 20PS DL SMD 30AU Headers & Wire Housings 20P SMT BREAKAWAY
155220-6203-RB
3m interconnect solutions
Conn Ejector Header HDR 20 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 20POS VERT .155"
155220-5302-RB
3m interconnect solutions

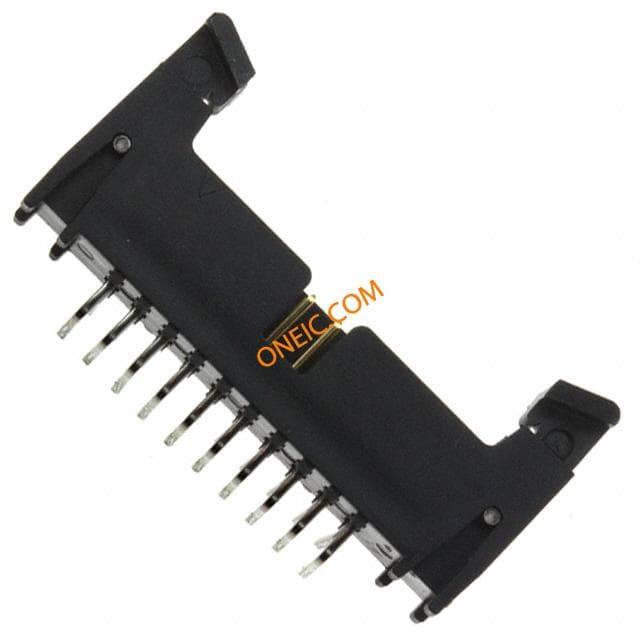

Conn Ejector Header HDR 20 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm Straight & Right Angle Through-Hole, Straight Surfacemount CONN HEADER 2MM 20POS R/A .112" Pitch Spa
