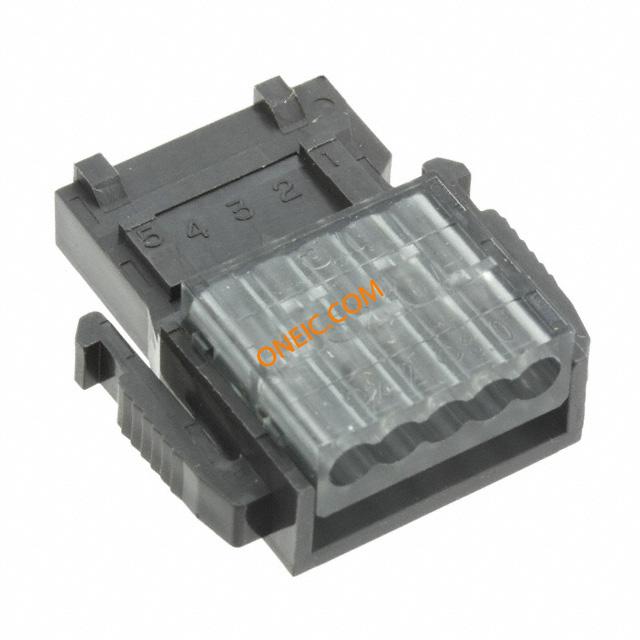

35505-6080-A00GF
| Manufacturer | |
| Description | POWER CLAMP WIREMOUNT SOCKET FOR CC-LINK 3 mm, IDC, 5 Position CONN SKT 2.2-3MM CLEAR WIREMNT Headers & Wire Housings 5P WRMNT SKT CLEAR 18 AWG PowerClampWiremountSocket,3mmIDC5Pos,2.2-3mm,18AWG,Clear |
| Category |
商业参数
| 零件号别名 | 51900158356 JE150261806 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 开关功能 | One Touch |
| 最大额定电流 | 7 A | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Bulk | 导线类型 | Discrete |
| 导线线规 | 18 AWG | 端接方式 | IDC |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Socket | 接触镀层 | Gold |
| 紧固类型 | Latch Lock | 安装样式 | Cable |
| 排数 | 1 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 主要材料 | Rectangular |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 触点数 | 5 |
| 位数 | 5 | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Ribbon Cable | 系列 | 355 |
| 制造商全称 | PowerClamp | 产品子类型 | Receptacles / Sockets - Housings |
Documents & Media
相关型号

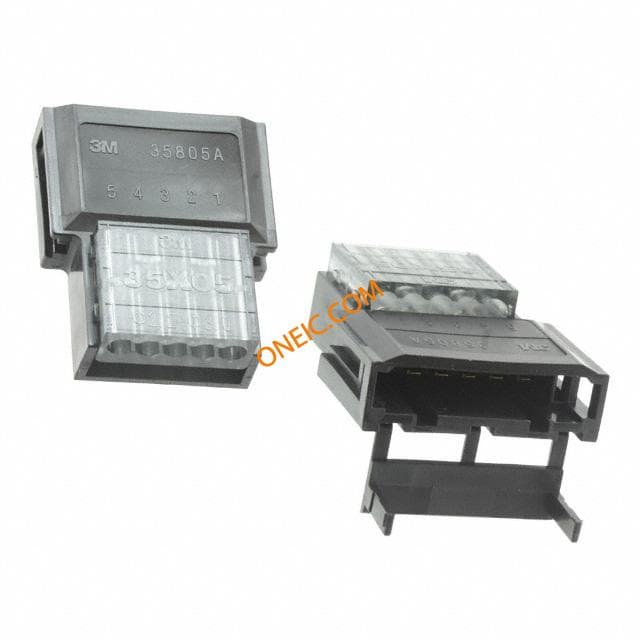

35805-6080-A00GF
3M Electronic Solutions Division
Headers & Wire Housings 5P IDC 3MM PANEL MNT PWR CLMP WIREMNT PLG CONN SKT 2.2-3MM CLEAR PowerClampWiremountPlug,3mmIDC,18AWGClear

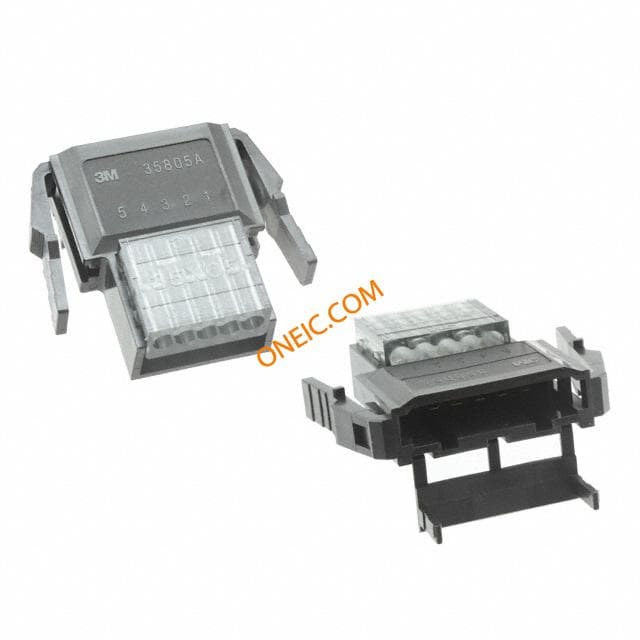

35805-6080-AP0GF
3M Electronic Solutions Division
Headers & Wire Housings 5P IDC 3MM PANEL MNT PWR CLMP WIREMNT PLG CONN SKT 2.2-3MM CLEAR PNLMNT PowerClampWiremountPlug,3mmIDC,PanelMount,18AWGClear

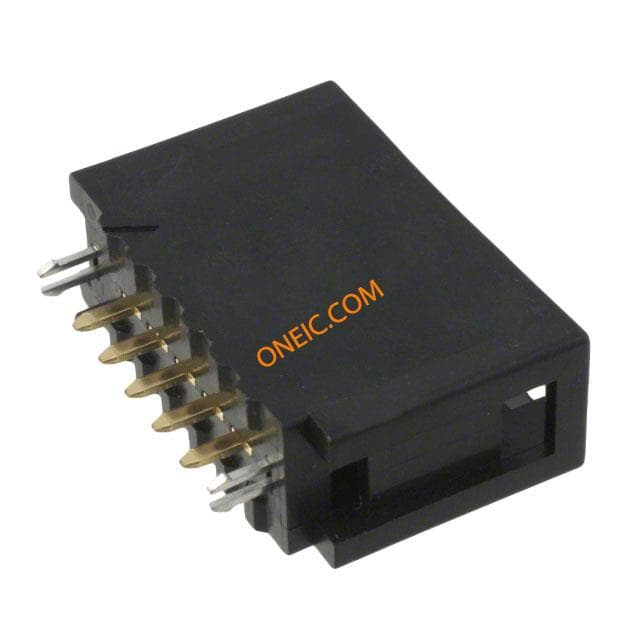

35605-6114-A00PE
3m interconnect solutions
Conn Power HDR 5 POS 3mm Solder ST Thru-Hole 5 Terminal 1 Port Headers & Wire Housings 5P 1 ROW HEADER POWER CLAMP CONN HEADER A POL BRDMNT PowerClampHeader,3mmStraight,1Row,Wide

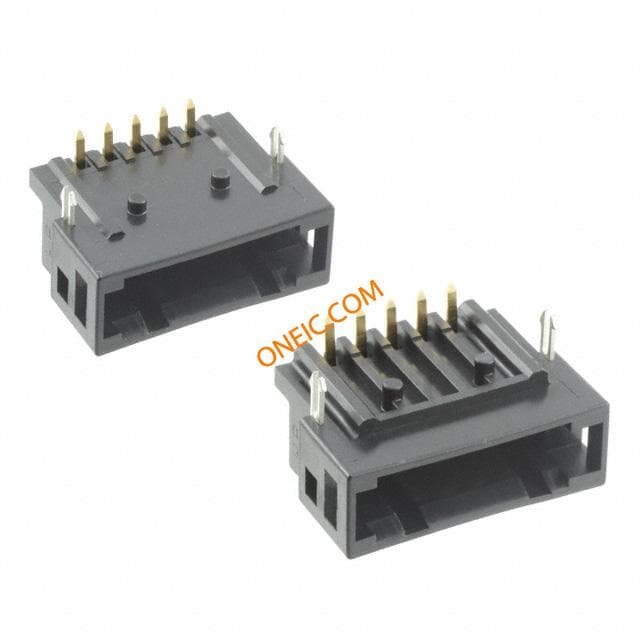

35605-5153-AP0PE
