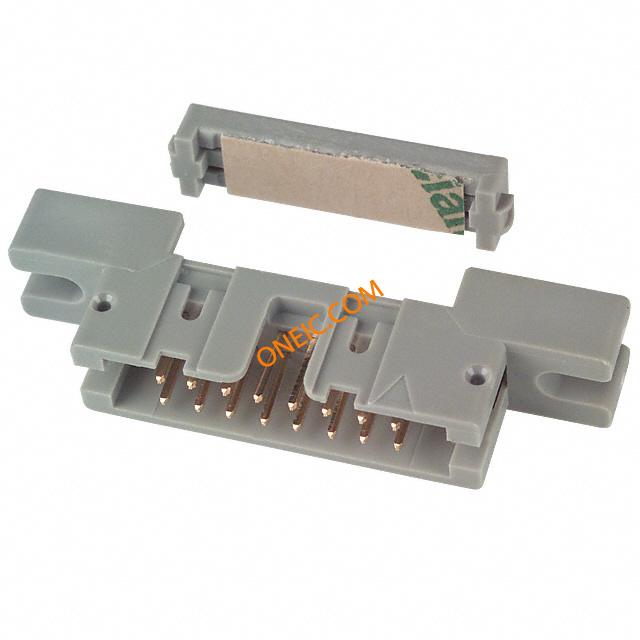

4616-6000
| Manufacturer | |
| Description | Conn Ejector Header PL 16 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable PLUG CONNECTOR 16 POS W/FLANGE 3M 4600 Series 2.54mm Pitch 16 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 16P OPEN END PLUG IDC SHROUDED HEADER HEADER, IDC, LUGGED, 16WAY Wiremountplug Pin strip DIN 41651 16P, 4616-6000, 3M 3M 4600 系列 2.54mm节距 16路 (2排) 直角 IDC 连接器, IDT端接, 1A , 电缆安装 |
| Category |
Business
| Part # Aliases | 05400735678 80610170617 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Standards | MIL-G-45204,QQ-N-290 |
| Tariff No | 85369010 | RoHS Compliance | Yes |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Range deg/s | :3M - 4600 Series | Voltage - Working | :350V |
| Contact Resistance | :20mohm | Current Rating (Max) | 1A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Color | Gray | Pitch | 2.54 mm |
| Weight | 1.700 lbs | Material | :Glass Filled Polyester (PBT) |
| Packaging | Bulk | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 26-28 AWG, Stranded or Solid | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | Male Pin |
| Lead Spacing | :2.54mm | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Plug |
| Contact Finish | Gold Over Nickel | Mounting Style | Wire |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Primary Material | Wiremount |
| Cable Termination | IDC | Pin Hole Diameter | 0.1" |
| 1st Contact Gender | Pin (Male) | Color - Connectors | :Grey |
| Number of Contacts | 16 | Contact Termination | :IDC / IDT |
| Dielectric Material | PBT | Number of Positions | 16 |
| Contact Finish Thickness | 30µin (0.76µm) | 1st Connector Mounting Type | :Cable |
Product Info
| Type | Ejector Header | Gender | PL |
| Series | 4600 | Features | Feed Through |
| Manufacturer | 4600Series | Product Type | Headers |
| Application Specifics | Wire-to-Wire | ||
Environmental
| Mating Cycles | :200 | Temperature - Test | :70°C |
| Operating Temperature | :105°C | ||
Documents & Media
