点击放大查看

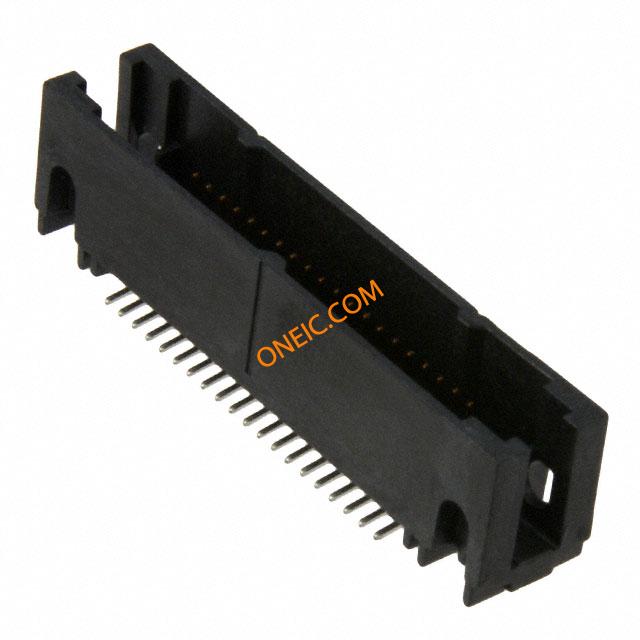

81040-600C01-RB
| Manufacturer | |
| Description | Conn Ejector Header HDR 40 POS 1.27mm Solder ST SMD Tray .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 40POS STR SMD Headers & Wire Housings 40POS STR SMD TRIPOLARIZED HEADER |
| Category |
商业参数
| 零件号别名 | 05111165868 80000901647 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | RoHS合规（认证） | Yes |
电气参数
| 最大额定电流 | 500 mA | ||
机械参数
| 颜色 | Black | 间距 | 1.27 mm |
| 包装方式 | Tray | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Surface Mount | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触头材料 | Copper Alloy | 端接样式 | Through Hole |
| 触点数 | 40 | 位数 | 40 |
| 接触长度 - 配合 | 0.140" (3.56mm) | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | 810 | 产品子类型 | Headers |
| 加载位置数 | All | ||
