点击放大查看

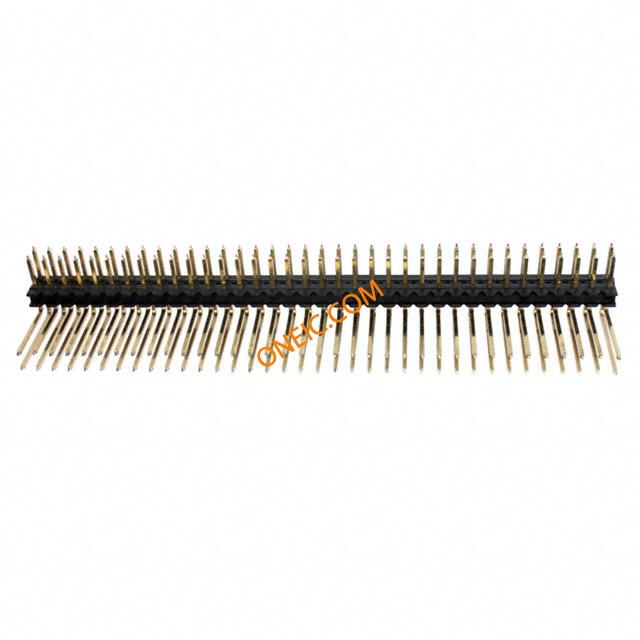

929667-02-36-I
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 05400780985 80620029035 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Approval Agency | cUL,UL |
| RoHS Compliance | Yes | Material Flammability Rating | UL94V-0 |
Electrical
| Current Rating (Max) | 2.5A | Insulation Resistance | >5x109Ohms@500VDC |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Thread Size | 4-40 |
| Contact Type | Male Pin | Length - Pin | 0.235" |
| Length - Tail | 0.21in. | Mounting Type | Through Hole, Right Angle |
| Angle of Throw | Right | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Mounting Style | Flange |
| Number of Rows | 2 | Terminal Style | PrintedCircuitBoard |
| Contact Material | CopperAlloy | Housing Material | GlassFilledPolyester |
| Length - Overall | 3.6" | Primary Material | PinStrip |
| Pin Hole Diameter | 0.1" | Termination Style | Through Hole |
| Number of Contacts | 72 | Dielectric Diameter | 1500V(RMS) |
| Number of Positions | 72 | Material - Insulation | GlassFilledPolyester |
| Contact Length - Mating | 0.235" (5.97mm) | Contact Finish Thickness | 10µin (0.25µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Series | 929 | Features | Stackable |
| Manufacturer | 929Series | Product Type | Headers |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -40to+105°C | ||
