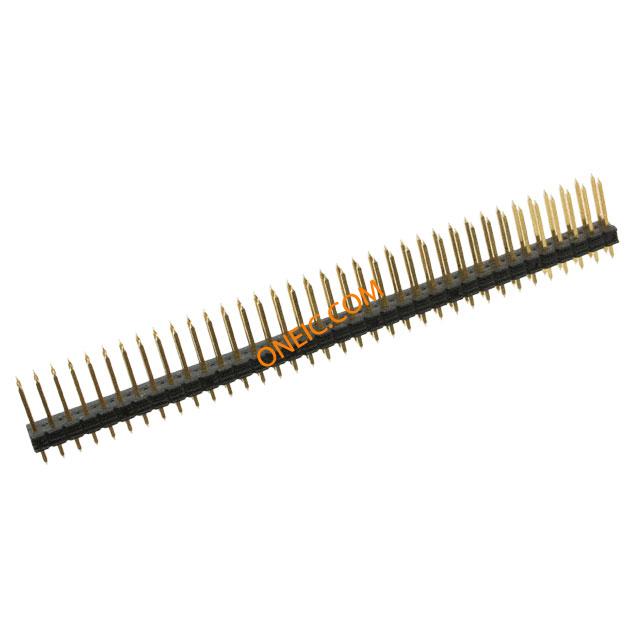

929715-01-36-I
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 72 POS 2.54mm Solder ST Thru-Hole .100", .235"/.318" Mating Length, Straight & Right Angle, Solder Tails CONN HEADER 72POS DUAL .100 STR Header;PinStrip;36;.100#,.318#MatingLength,Straight,Soldertail,goldpltg |
| Category |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 认证机构 | cUL,UL |
| RoHS合规（认证） | Yes | 材料阻燃等级 | UL94V-0 |
电气参数
| 最大额定电流 | 2.5A | 绝缘电阻 | >5x109Ohms@500VDC |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Bulk | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 螺纹尺寸 | 4-40 |
| 触头类型 | Male Pin | 引脚长度（针脚） | 0.318" |
| 尾部长度 | 0.11in. | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Flange |
| 排数 | 2 | 端子样式 | PrintedCircuitBoard |
| 触头材料 | CopperAlloy | 壳体材料 | GlassFilledPolyester |
| 总长度 | 3.6" | 主要材料 | PinStrip |
| 插针孔直径 | 0.1" | 触点数 | 72 |
| 绝缘直径 | 1500V(RMS) | 位数 | 72 |
| 绝缘材料 - 材质 | GlassFilledPolyester | 接触长度 - 配合 | 0.318" (8.08mm) |
| 接触镀层厚度 | 10µin (0.25µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 产品特性 | Stackable | 制造商全称 | 929Series |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40to+105°C | ||
