DIN-064CPB-RR1-HM
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 05111994226 80001222340 | Product Category | DIN 41612 Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Pitch | 2.54 mm | Packaging | Bulk |
| Termination | Solder | Length - Tail | 2.75 mm |
| Mounting Type | Through Hole | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Termination Style | Solder | Number of Contacts | 64 |
| Number of Positions | 96 | Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Contact Finish Thickness | 3µin (0.08µm) | ||
Product Info
| Type | DIN 41612 | Style | C |
| Series | DIN | Features | Board Lock |
| Product Type | Plugs | Number of Positions Loaded | 64 |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Similar Parts
DIN-064CSB-W-HM
3m interconnect solutions
$19.8941
Details

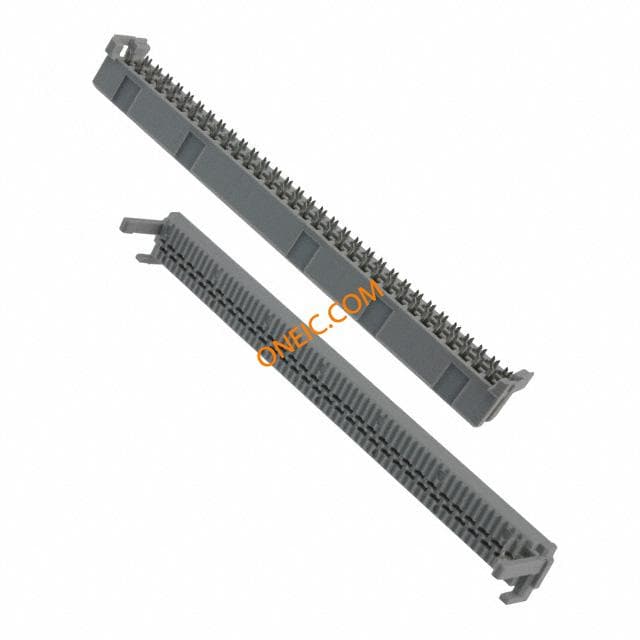

62C64-1100EC
3m interconnect solutions
$102.0000
Details

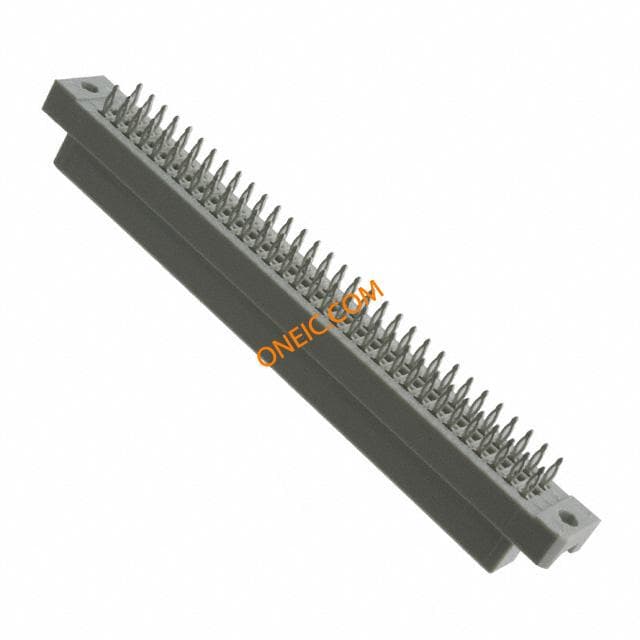

DIN-064CSB-PSL-HM
3m interconnect solutions
$20.8080
Details
DIN-064CSB-S1L-HM
3m interconnect solutions
$8.8400
Details

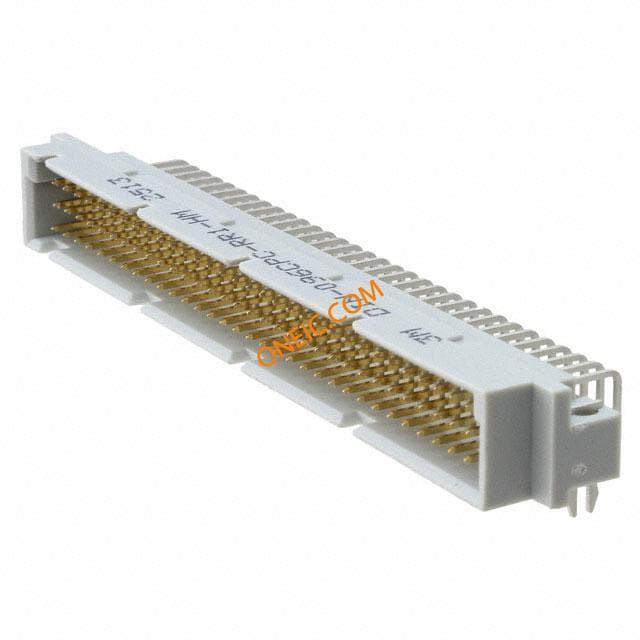

DIN-096CPC-RR1-HM
3m interconnect solutions
$23.1200
Details
DIN-064CSB-PS-HM
3m interconnect solutions
$13.8883
Details
DIN-064CSB-PS-KR
3m interconnect solutions
$21.6770
Details

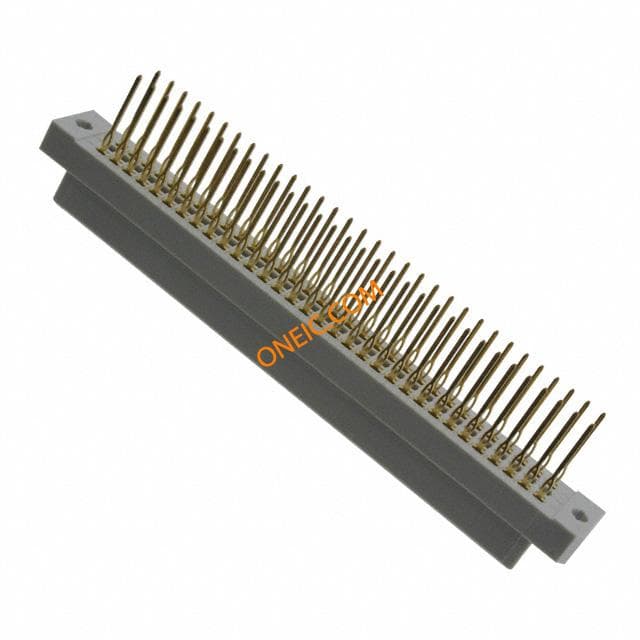

DIN-064CSB-PW1-KV
3m interconnect solutions
$29.3719
Details

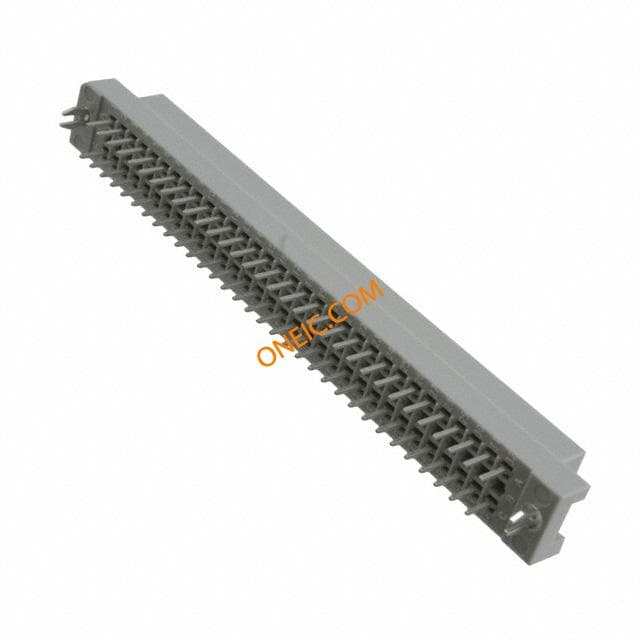

DIN-064CSB-R1L-HM
3m interconnect solutions
$9.8831
Details
DIN-064CSB-R1L-KR
3m interconnect solutions
$23.5028
Details
DIN-064CSD-S1L-HM
3m interconnect solutions
$18.2988
Details
DIN-064CSB-S1L-KR
3m interconnect solutions
$13.5245
Details
DIN-064RSB-RR1L-HM
3m interconnect solutions
$15.1082
Details
62C64-1101EC
3M Electronic Solutions Division
$98.1500
Details
DIN-064CSB-S3L-HM
3m interconnect solutions
$22.2360
Details

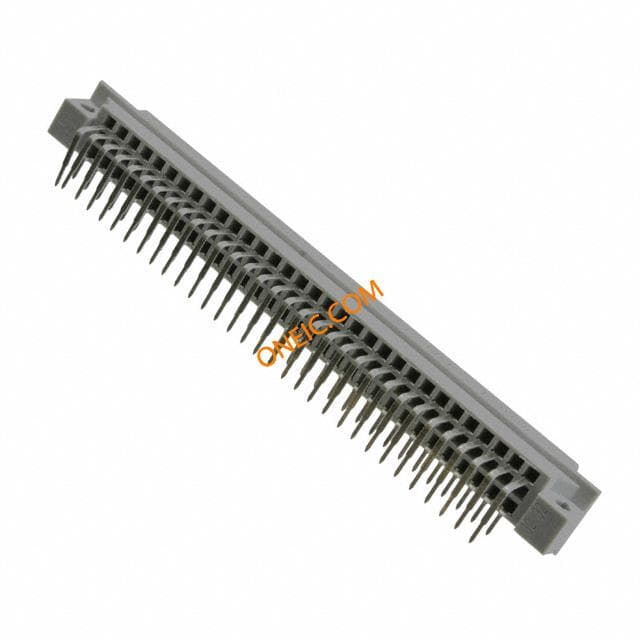

DIN-064RSB-SR1-HM
