DIN-096CPC-SR1-KR
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 05111994285 80001222936 | Product Category | DIN 41612 Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 100 V | Current Rating (Max) | 3A |
| Insulation Resistance | 1000 MOhms | ||
Mechanical
| Pitch | 2.54 mm | Packaging | Bulk |
| Termination | Solder | Length - Tail | 2.75 mm |
| Mounting Type | Through Hole | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Number of Rows | 3 |
| Contact Material | Copper Alloy | Housing Material | Polyester |
| Termination Style | Solder Tail | 1st Contact Gender | Male |
| Number of Contacts | 96 | Number of Positions | 96 |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | DIN 41612 | Style | C |
| Series | DIN | Product Type | Plugs |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Archive
Archive
Similar Parts
DIN-096CSC-W-KV
3m interconnect solutions
$26.4520
Details

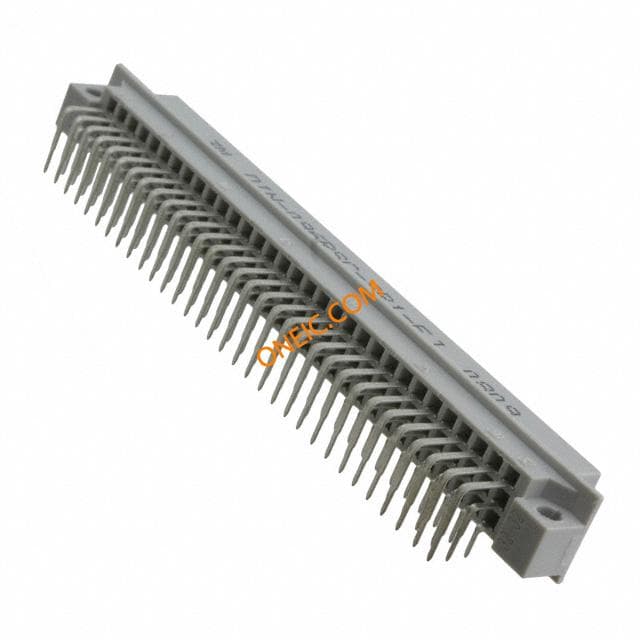

DIN-096RSC-SR1-FJ
3m interconnect solutions
$22.9840
Details
DIN-096RSC-RR1L-FJ
3m interconnect solutions
$11.0840
Details

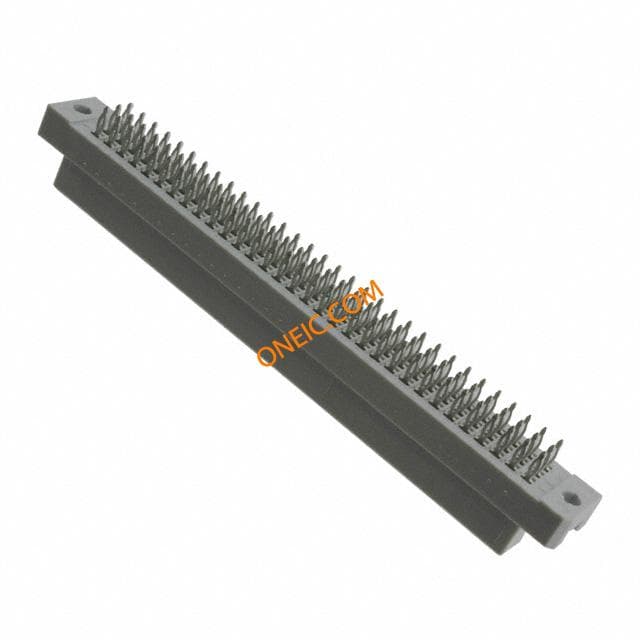

DIN-096CSC-PSL-HM
3m interconnect solutions
$33.1650
Details
DIN-096CSC-PS-HM
3m interconnect solutions
$19.1434
Details
DIN-096RSC-RR1-KR
3m interconnect solutions
$31.6241
Details
DIN-096CSC-PSL-KR
3m interconnect solutions
$39.9758
Details
DIN-096CSC-R1L-KR
3m interconnect solutions
$26.6506
Details
DIN-096CSC-S1L-KR
3m interconnect solutions
$37.6720
Details
DIN-096CSC-W-HM
3m interconnect solutions
$28.9027
Details
DIN-096RSC-RR1L-HM
3m interconnect solutions
$11.5335
Details
DIN-096CSC-PS-KR
3m interconnect solutions
$30.3103
Details
DIN-096CSC-S1L-HM
3m interconnect solutions
$62.0370
Details
DIN-096CSC-R1L-HM
3m interconnect solutions
$16.0827
Details

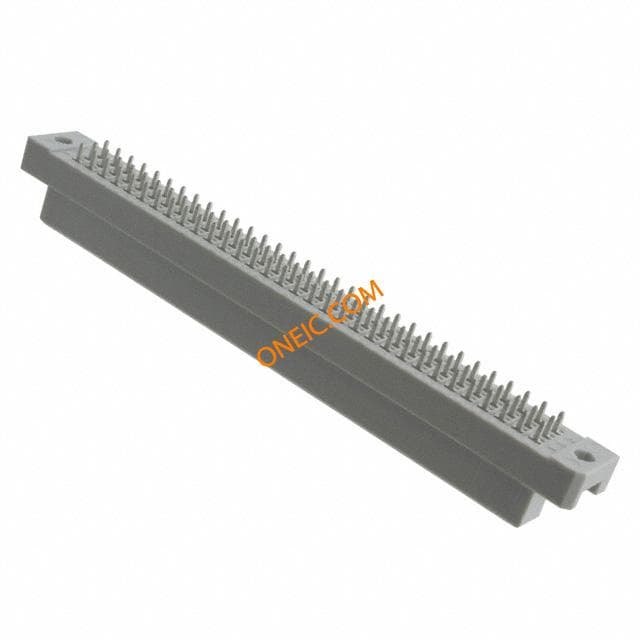

DIN-096CSC-S3L-HM
