MP2-H096-41P1-S-TG30
| Manufacturer | |
| Description | Conn Hard Metric HDR 96 POS 2mm Press Fit ST Thru-Hole CONN HEADER 2-FB 96POS 4ROW High Speed / Modular Connectors 2-FB 96POS 4ROW HEADER |
| Category |
商业参数
| 零件号别名 | 15020469209 | 产品类别 | High Speed / Modular Connectors |
| 标准包装数量 | Bulk | 工厂包装数量 | 10 |
合规参数
| RoHS | Vendor undefined / RoHS non-compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 最大额定电流 | 1.5A | ||
机械参数
| 颜色 | Beige | 间距 | 2 mm |
| 包装方式 | Tube | 端接方式 | Press Fit |
| 安装类型 | Through Hole | 连接器类型 | Header, Male Pins |
| 接触镀层 | Gold Over Nickel | 安装样式 | PCB |
| 排数 | 4 | 连接器样式 | Futurebus+® |
| 连接器用途 | Backplane | 触头材料 | Copper Alloy |
| 壳体材料 | Liquid Crystal Polymer (LCP) | 端接样式 | Press Fit |
| 触点数 | 96 | 位数 | 96 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Hard Metric | 系列 | MP2 |
| 产品特性 | Board Guide | 加载位置数 | All |
环境参数
| 工作温度 | -55°C ~ 125°C | ||
Documents & Media
相关型号
MP2-S096-41M1-C-TG30
3m interconnect solutions
Conn Hard Metric SKT 96 POS 2mm Solder RA Thru-Hole CONN SOCKET 2-FB 96POS 4ROW High Speed / Modular Connectors 96 CON RT ANG 4 ROW 2.72 MM
MP2-SS096-41S1-TG30
3m interconnect solutions
Conn Hard Metric SKT 96 POS 2mm Solder ST Thru-Hole CONN SOCKET 2-FB 96POS 4ROW High Speed / Modular Connectors 96 CON VERT 4 ROW 3.53 MM

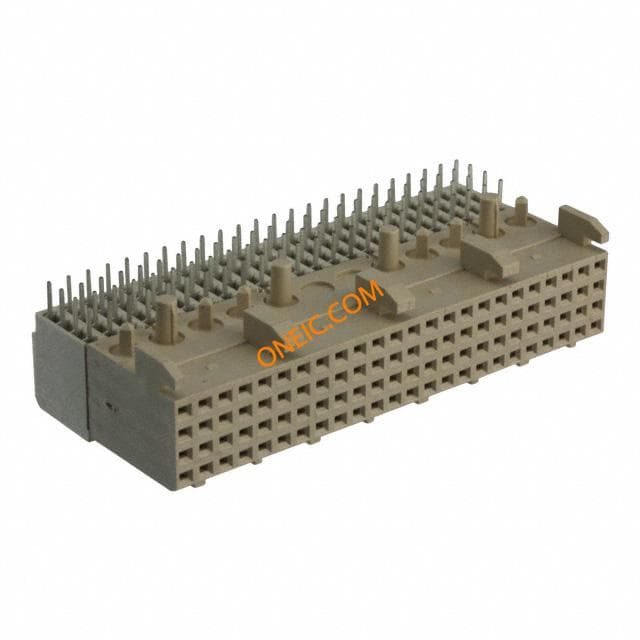

MP2-S096-41M1-C-KR
3M Electronic Solutions Division
High Speed / Modular Connectors MP2/SKT/RA/96P/4R PRSPG2.72MM/CPD30GRO 2 mm 4/5-Row, Solder Tail or Press-Fit With Tail Cover, Right Angle CONN SOCKET 2-FB 96POS 4ROW

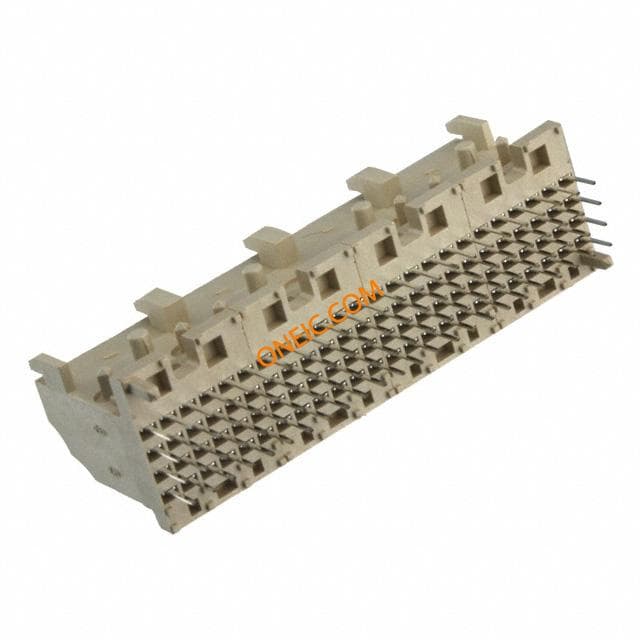

MP2-SS096-41S1-TR30
