点击放大查看

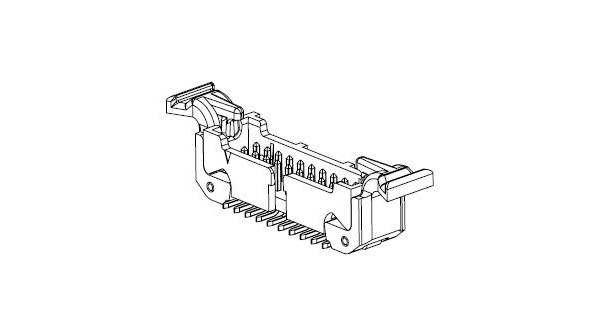

45212-220230
| Manufacturer | |
| Description | 80001405861 CONN HEADER .05" 12POS SMT Headers & Wire Housings 4P, .050 Pitch HDR R/A ThruHole,Flash Shrouded Boardmount Header 12P PU=500 ST, 45212-220230, 3M |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 80001405861 | 标准包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 125 V | 极数 | 12 |
| 开关功能 | Latched | 最大额定电流 | 1 A |
机械参数
| 间距 | 0.050" (1.27mm) | 包装方式 | Tape & Reel (TR) |
| 排间距 | 0.050" (1.27mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold |
| 紧固类型 | Latch Lock/Eject Hooks | 排数 | 2 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Liquid Crystal Polymer (LCP) |
| 端接样式 | SMD | 第一触头极性 | Pin (Male) |
| 触点数 | 12 | 位数 | 12 |
| 第一连接器极性 | Male | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Shrouded | 系列 | 452 |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | - 55 C to + 105 C | ||
