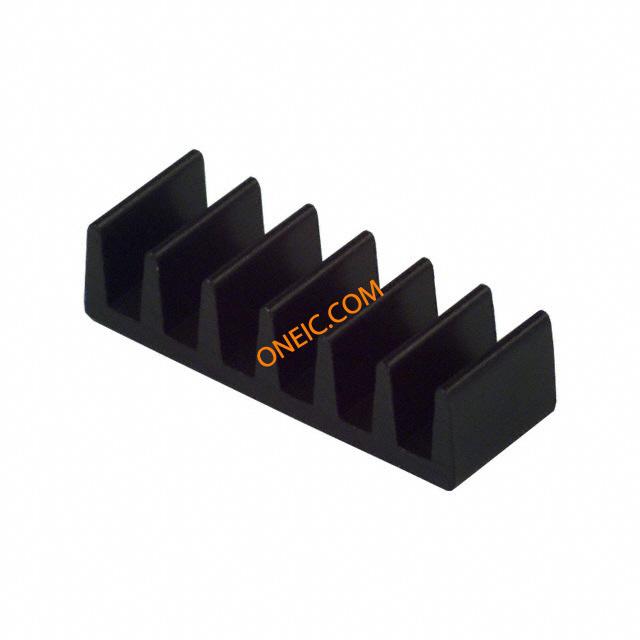

501200B00000G
| Category |
对参数有疑问?问 AI 助手
Business
| Product | Heat Sinks | Part # Aliases | 001128 |
| Product Category | Heat Sinks | Standard Package | Bulk |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 76041090 | ||
Mechanical

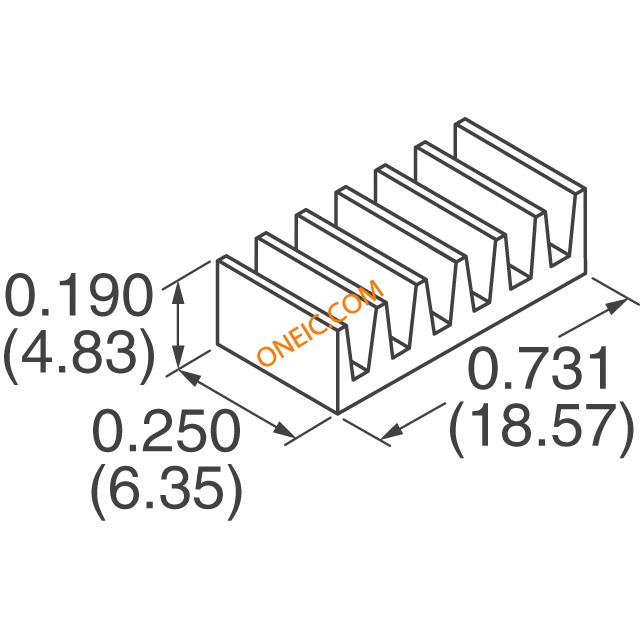

| Color | Black | Depth | 6.35 mm |
| Shape | Rectangular | Width | 6.35 mm |
| Finish | Black Anodized | Height | 4.83 mm |
| Length | 18.542 mm | Weight | 0.00068 |
| Material | Aluminum | Fin Height | Straight |
| Mounting Style | Adhesive | Package Cooled | DIP14|DIP16 |
| Width (Inches) | :0.25" | Height (Inches) | :0.19" |
| Material Finish | Black Anodized | Width - Overall | :6.35mm |
| Length - Overall | 18.57 mm | Attachment Method | Extruded Epoxy |
| Heat Sink Material | Aluminum | Height - Seated (Max) | 0.190" (4.83mm) |
| Shell Size - Insert (Convert From) | :4.82mm | ||
Product Info
| Type | Passive | Application | DIP-14, DIP-16 |
Environmental
| Thermal Resistance | 68 °C/W | Thermal Resistance @ Natural | 68°C/W |
| Power Dissipation @ Temperature Rise | 0.4W @ 30°C | Thermal Resistance @ Forced Air Flow | 50°C/W @ 200 LFM |
