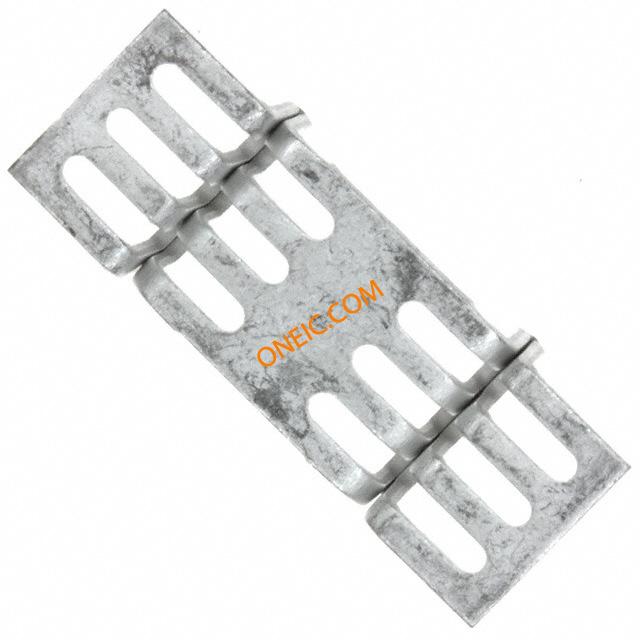

573100D00000G
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Heat Sinks | Lead Time | 63 Days |
| Subcategory | Heat Sink | Part # Aliases | 041638 |
| Product Category | Heat Sinks | Standard Package | Bulk |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 76041090 | Rad Hardened | No |
Mechanical
| Depth | 8 mm | Shape | Rectangular |
| Width | 22.86 mm | Height | 10.16 mm |
| Length | 8 mm | Weight | 0 |
| Material | Copper | Mounting Style | SMD/SMT |
| Package Cooled | D PAK|TO-252 | Width (Inches) | :0.9" |
| Height (Inches) | :0.4" | Material Finish | Tin |
| Width - Overall | :22.86mm | Length - Overall | 22.86 mm |
| Attachment Method | Surface Mount | Heat Sink Material | Copper |
| Height - Seated (Max) | 0.400" (10.16mm) | Shell Size - Insert (Convert From) | :10.16mm |
Product Info
| Type | Passive | DELETED | Compliant |
| Application | TO-252 | For Use With/Related Products | 573100D00000 |
Environmental
| Thermal Resistance | 15 C/W | Thermal Resistance @ Natural | 28°C/W |
| Power Dissipation @ Temperature Rise | 0.75W @ 30°C | Thermal Resistance @ Forced Air Flow | 12.5°C/W @ 600 LFM |
