2TLA010028R1000
| Manufacturer | |

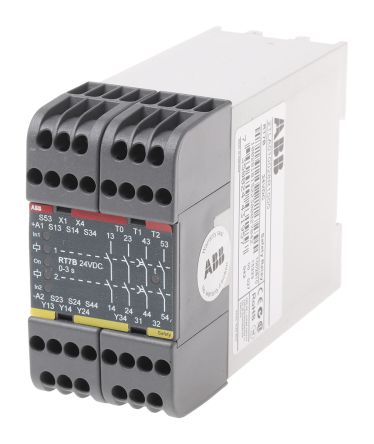

| Description | RT7B Safety Relay 3s Delay,24Vdc,4NO/1NC RT7 series safety relay with 24V DC supply, 45mm wide ABB RT7B 系列 单或双通道 安全继电器, 24 V 直流, 5 安全触点 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Safety Category | Category 4 PLe EN ISO 13849-1:2008, EN 62061, EN 954-1, EN 954-1: 1996, EN 954-1: 2004/108/EC, EN 954-1: 2006/42/EC, EN ISO 13849-1:2008, PFH d 9.55E-09, SIL 3 EN 62061:2005 | Other Specifications | E |
| Safety Outputs and Type | 4NO/NC | ||
Electrical
| Power - Rated | 4.6 W | Number of Poles | 5P |
| Voltage - Supply | 24 V dc | Number of Channels | 1, 2 |
| Contact Rating (Current) | 6 A | Contact Rating @ Voltage | 24 V dc, 250 V ac |
Mechanical
| Depth | 120mm | Width | 45mm |
| Length | 84mm | Terminal Type | Terminal Block |
| Connector Type | 端子块 | Mounting Style | DIN Rail Mount |
| Size / Dimension | 84 x 45 x 120 mm | ||
Product Info
| Type | RELAY | Series | RT7B |
| Function | 光束/幕墙，安全垫/触边，安全开关/互锁装置 | Other Specifications | 5 |
| Number of Safety Outputs | 0 | Normal State Configuration | 4NO/NC |
Environmental
| Operating Temperature | +55°C | ||
