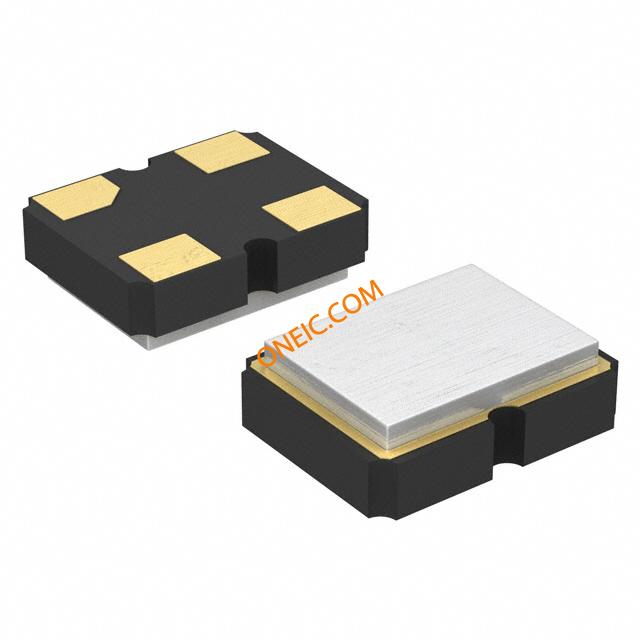

ASEK-32.768KHZ-LRT

点击放大查看

对参数有疑问?问 AI 助手

Business

ProductXOLead Time70 Days
Other Names535-9998-1SubcategorySMD Crystal Oscillator
Product CategoryStandard Clock OscillatorsStandard PackageTape & Reel

Compliance

RoHSLead free / RoHS Compliant

Electrical

OutputCMOSSymmetry60 %
Frequency32.768kHzCurrent - Supply3.5mA
Duty Cycle (Max)60%Load Capacitance15 pF
Voltage - Supply3.3 VFrequency Stability±25 ppm
Frequency Tolerance±3ppm/YearCurrent Rating (Max)3.5mA
Frequency - Operating0.032768 MHz

Mechanical

Height0.047" (1.20mm)PackagingTape and Reel
Mounting TypeSurface MountMounting StyleSMD/SMT
Package / Case4SMDSize / Dimension0.126" L x 0.098" W (3.20mm x 2.50mm)
Termination StyleSMD/SMT

Product Info

TypeCrystal OscillatorSeriesASEK
FunctionTri-State (Output Enable)Industry AliasesASEK-32.768KHZ-L-R-T

Environmental

Operating Temperature-40°C ~ 85°C

Documents & Media

PDF Document
PDF Document

Sourcing & traceability

Datasheet
ASEK.pdf

Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
