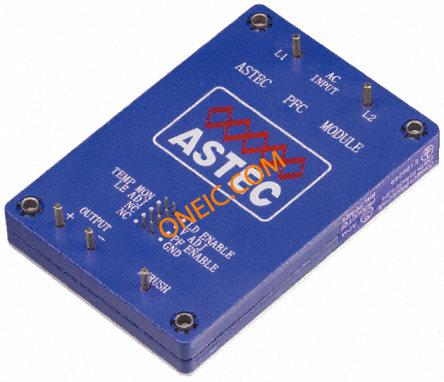

AIT02ZPFC-01NL
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | AIT02ZPFC01NL | Standard Package | 50 |
Compliance
| RoHS | Compliant | Approval Agency | cUL, TUV, UL |
Electrical
| Efficiency | 93% | Power (Watts) | 720W |
| Power - Rated | 720W | Voltage Rating | 85 → 264V ac |
| Current - Output | 2.1A | Number of Outputs | 1 |
| Power Supply Type | Switching (Closed Frame) | Power (Watts) - Max | 825W |
| Voltage - Input (Min) | 85 ~ 264 VAC | ||
Mechanical
| Depth | 12.7mm | Width | 60.96mm |
| Length | 88.9mm | Weight | 170g |
| Mounting Type | Through Hole | Package Cooled | Encapsulated |
| Size / Dimension | 3.50" L x 2.40" W x 0.55" H (88.9mm x 61.0mm x 14.0mm) | ||
Product Info
| Features | OTP, OVP | Applications | Commercial |
Environmental
| Operate Time | 1000000h | Operating Temperature | -20°C ~ 100°C |
| Maximum Temperature Limit | +100°C | ||
