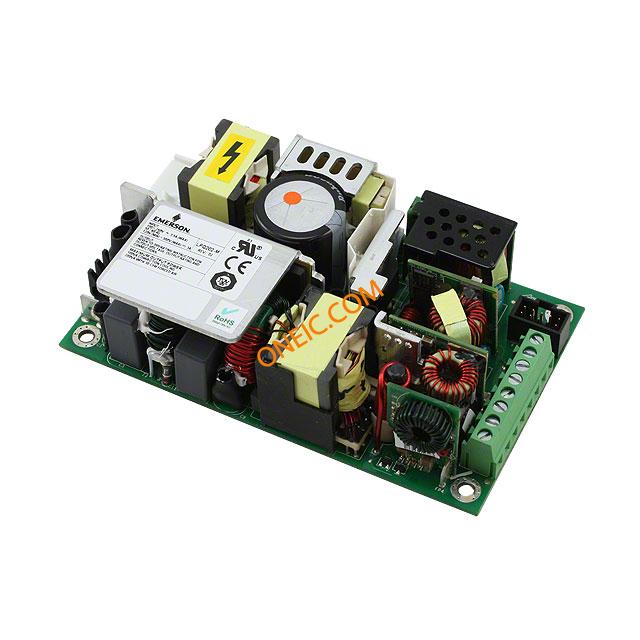

LPQ201-M
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 48 | ||
Compliance
| Approval Agency | CB, CE, CSA, TUV, UL | ||
Electrical
| Efficiency | 84% | Power (Watts) | 200W |
| Line Regulation | ±2%, ±5% | Load Regulation | ±2%, ±5% |
| Current - Output | 12 VDC @ 9A | Number of Outputs | 4 |
| Power Supply Type | Switching (Open Frame) | Power (Watts) - Max | 200W |
| Voltage - Input (Min) | 3.3V, 5V, ±12V | ||
Mechanical
| Mounting Type | Chassis Mount | Size / Dimension | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
Product Info
| Type | Standard Product | Applications | Commercial, Medical |
Environmental
| Operating Temperature | -20°C ~ 50°C | ||
