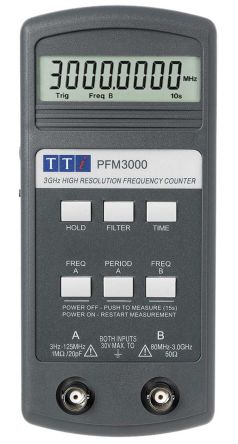

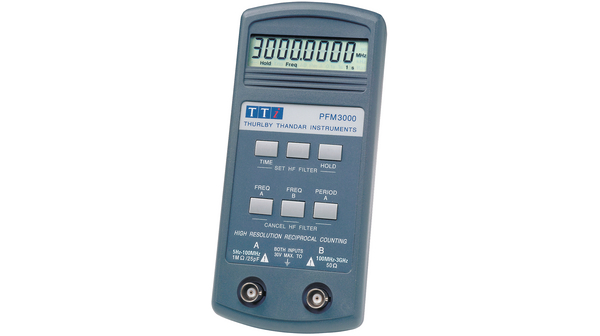

PFM3000
| Manufacturer | |
| Description | UKAS (457730) Frequency Counter RSCAL (457730) Frequency Counter 3GHz frequency Counter Hand Held RF frequency meter; LCD 8,5 digit; range: 3Hz÷3GHz; ~20h Frequency meter 3 GHz, PFM3000, Aim-TTi Aim-TTi 3000MHz 计频器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | ||
Electrical
| Frequency | frequency resolution: 0,001mHz, range: 3Hz...3GHz | Resolution | 6 Digit |
| Input Signal | Frequency | Power - Input | 1 battery 9V 6F22, must be ordered separately |
| Counter/Timers | 188888888 | Voltage Rating | 30V ac/dc |
| Frequency - Max | 3000MHz | Frequency - Min | 3 Hz |
| Frequency Range | 3 Hz...3 GHz | Input Impedance | 1 MΩ, 50 Ω |
| Voltage - Supply | 30V交流/直流 | ||
Mechanical
| Size | 178 x 81 x 30 mm | Width | 81mm |
| Height | 30mm | Length | 178mm |
| Weight | 190g | Input Connector | BNC |
| Size / Dimension | 178 x 81 x 30mm | ||
Product Info
| Function | 2 | Meter Type | RF frequency meter |
| Calibration | UKAS | Description | Frequency counter |
| Part Number | PFM3000 | Model Number | PFM3000 |
| Display Style | LCD 8,5 digit | Battery Series | ~20h |
| Number of Units | 1 | Measurement Type | 10s |
| Internal Connection | 188888888 | Other Specifications | 10s |
Environmental
| Operating Temperature | +40°C | ||
