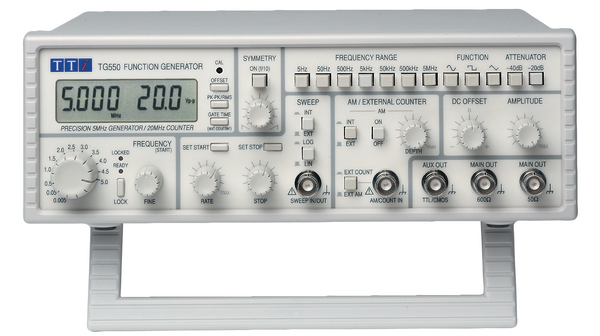

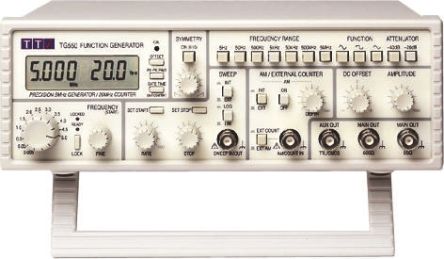

TG550
| Manufacturer | |
| Description | RSCAL(3245802),TG550 function generator TG550 sweep function generator w/counter Generator: function; range: 0,005Hz÷5MHz Function generator 1x5 MHz, TG550, Aim-TTi Aim-TTi 5MHz 函数发生器 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Not Applicable | ||
Electrical
| Output | 0 → 5V | Accuracy | ±10ppm |
| Frequency | Yes | Impedance | 50 Ω, 600 Ω |
| Scan Rate | 是 | Vgs (Max) | 5 |
| Modulation | Yes | Resolution | 2 |
| Wavelength | DC | Output Type | 0 → 5V |
| Power - Input | 110 VAC | Frequency - Max | 5MHz |
| Frequency Range | 5MHz | Input Impedance | 1 MΩ |
| Output Function | 0 → 5V | Attenuation - Typ | 0 dB, -20 dB, -40 dB, -60 dB |
| Analog Input:Output | 是 | Frequency Stability | ±10ppm |
| Frequency Tolerance | 0.005Hz | Insertion Loss (Max) | -60 dB, -40 dB, -20 dB, 0 dB |
| Voltage - Input (Min) | ±10 | Voltage - Supply (Min) | ±5 |
| Amplitude (Level) Range | Yes | ||
Mechanical
| Size | 260 x 235 x 88 mm | Width | 260mm |
| Height | 88mm | Length | 235mm |
| Weight | 1.9kg | Flow (CFM) | 是 |
| Connector Type | Type C - European Plug, Type G - British 3-pin | Size / Dimension | 235 x 260 x 88mm |
Product Info
| Type | function | Features | waveforms: sinus, triangle, squarewave plus DC |
| Function | 1 | Plug Type | Type C - European Plug, Type G - British 3-pin |
| Calibration | RSCAL | Description | Function generator, 0.005 Hz...5 MHz |
| Part Number | TG550 | Model Number | TG550 |
| Display Style | LCD, 8 digits | Number of Units | 1 |
| Functions, Extra | Frequency counter | Variation Suffix | Yes |
| Internal Switch(s) | Yes | Other Specifications | 是 |
Environmental
| Operating Temperature | +40°C | ||
