11181250
| Manufacturer | |

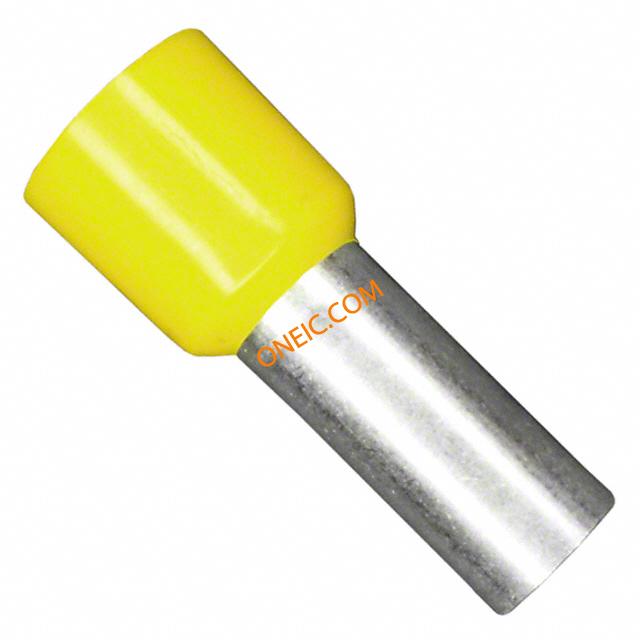

| Description | CONN FERRULE DIN 4AWG YELLOW Ferrule;4AWG;InsulatedWire |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 288-1037 | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant Part | ||
Mechanical
| Size | 4 AWG (25mm²) | Color | Yellow |
| Insulation | Insulated | Wire Gauge | 4 |
| Length - Pin | 18.00mm | Angle of Throw | Straight |
| Contact Finish | Tin | Contact Material | Copper |
| Length - Overall | 31.00mm | Package Quantity | 50 |
| Primary Material | Insulated | Stripping Length | 18mm |
| Insulation Diameter | 12mm | Dimensions - Overall | 11mm |
Product Info
| Type | Single Wire | Style | DIN |
| Manufacturer | DINColorCode | Tool Type Feature | TRAP8-1,TRAP8-4 |
