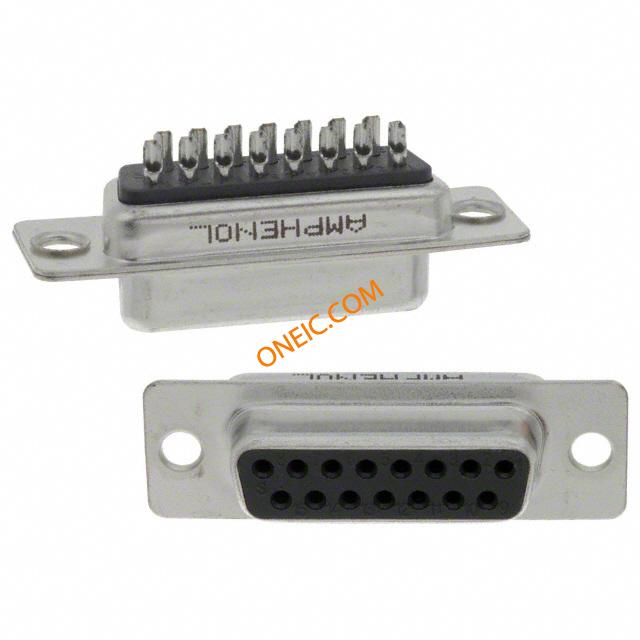

G17S1500110EU
| Manufacturer | |
| Description | Conn D-Subminiature RCP 15 POS 2.77mm Solder Pot ST Panel Mount 15 Terminal 1 Port D-Sub Standard Connectors 15P RECPT SOLDER CUP FIXED PRECISION CONN D-SUB RCPT 15POS GOLD FLASH D SUB CONNECTOR, STANDARD, 15POS, RCPT |
| Category |
商业参数
| 零件号别名 | 03M8097 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | Trays | 工厂包装数量 | 72 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :AMPHENOL - G17S Series | 额定电压 | 250V |
| 最大额定电流 | 5 A | ||
机械参数
| 颜色 | Black | 间距 | 2.77 mm |
| 重量 | 0.005 | 包装方式 | Bulk |
| 外壳尺寸 | :DA | 端接方式 | Solder Pot |
| 触头类型 | Signal | 基体材料 | :Steel |
| 安装类型 | Panel Mount | 外壳镀层 | Tin |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 本体材料 | :Metal |
| 触头材料 | Brass | 壳体材料 | Polybutylene Terephthalate (PBT), Glass Filled |
| 端接样式 | Solder | 触点数 | 15 |
| 接触件端接 | :Solder | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 2 (DA, A) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | RCP |
| 系列 | D-DF | ||
