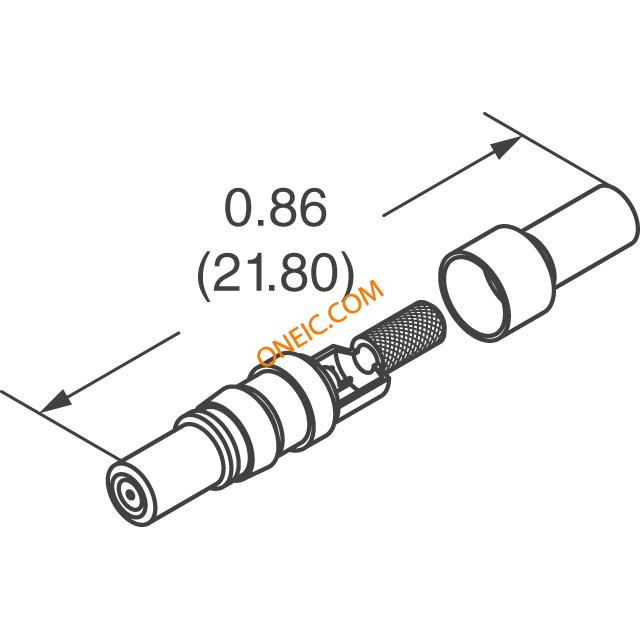

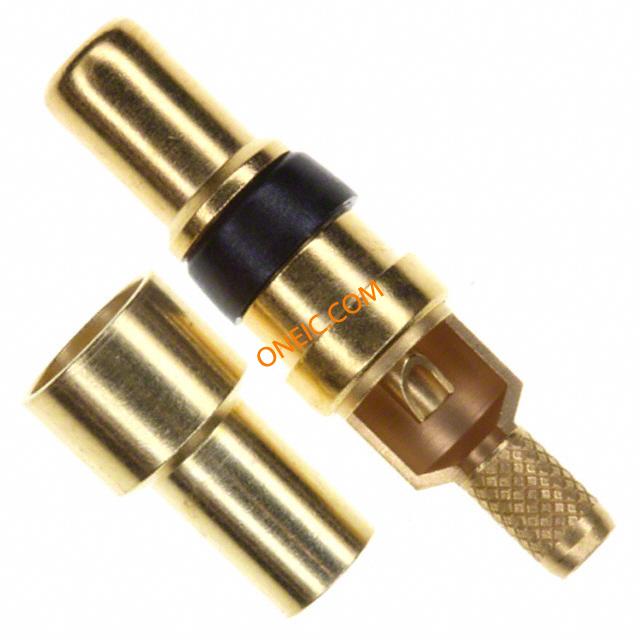

L17DM537401
| Manufacturer | |
| Description | Contact PIN Crimp ST Cable Mount D-Sub Contacts COAX PLG CRIMP CNT D-SUB PIN STR SHIELDED CRIMP D SUB CONTACT, PIN, CRIMP |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 99K7787 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Bag | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 输出电流 | :5A | 最大额定电流 | 0.5 A |
机械参数
| 重量 | 0.002 | 包装方式 | Bulk |
| 导线线规 | RG-179 B/U, 316 B/U | 端接方式 | Crimp |
| 触点形式 | Machined | 触头类型 | Male Pin |
| 连接器类型 | Connector Headers and PCB Receptacles | 接触镀层 | Gold Over Nickel |
| 触头材料 | Phosphor Bronze | 端接样式 | Solder |
| 第一触头极性 | Pin (Male) | 端接表面处理 | Gold |
| 接触件端接 | Crimp | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | Coaxial | 连接器性别 | PIN |
| 系列 | :TW | 附件类型 | :D Sub Contact |
| 适用产品/相关产品 | :D-Sub Connectors | ||
Documents & Media
PDF Document
