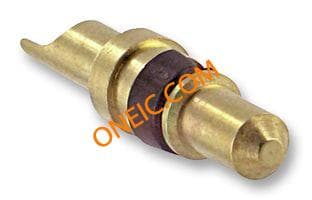

L17DM537457
| Manufacturer | |
| Description | Contact PIN Solder ST D-Sub Contacts DSUB COMM ACC CONN S-SUB PIN 14AWG SOLDER GOLD Solder cup power contact male 30A L17DM537457 Amphenol 公 焊接 功率 D-Sub 连接器电源触点, 镀金 触点 |
| Category |
对参数有疑问？问 AI 助手
商业参数
| 零件号别名 | 99K7832 | 产品类别 | D-Sub Contacts |
| 标准包装数量 | Bag | 工厂包装数量 | 1000 |
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 最大额定电流 | 20 A | ||
机械参数
| 长度 | 22mm | 包装方式 | Bulk |
| 导线线规 | 14-12 AWG | 端接方式 | Solder |
| 触点形式 | Machined | 触头类型 | Power |
| 连接器类型 | Connector D-Subminiature | 接触镀层 | Gold |
| 触头材料 | Brass | 端接排数 | 焊接 |
| 端接样式 | Solder | 第一触头极性 | Pin (Male) |
| 端接表面处理 | Gold | 接触件端接 | Solder Cup |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Power | 连接器性别 | PIN |
| 系列 | L17DM | ||
