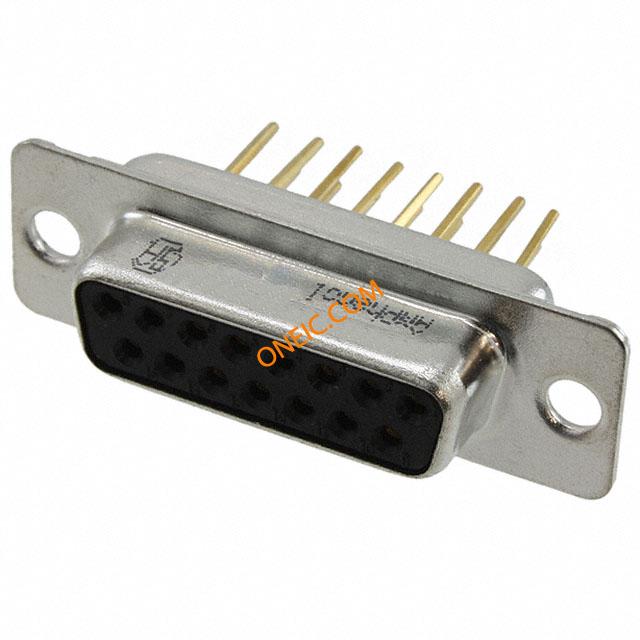

L77DA15SF179
| Manufacturer | |
| Description | Conn D-Subminiature SKT 15 POS Wire Wrap ST Panel Mount 15 Terminal 1 Port CONN D-SUB SKT 15POS WIRE WRAP |
| Category |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
电气参数
| 额定电压 | 300V | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Black | 深度 | 12.93 mm |
| 包装方式 | Tray | 端接方式 | Wire Wrap |
| 触头类型 | Signal | 安装类型 | Panel Mount |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold Over Nickel |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 连接器样式 | D-Sub |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 总长度 | 39.52 mm | 第一触头极性 | SKT |
| 触点数 | 15 | 位数 | 15 |
| 外壳材料及表面处理 | Steel, Tin Plated | 外壳尺寸，连接器布局 | 2 (DA, A) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 端口数 | 1 | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
