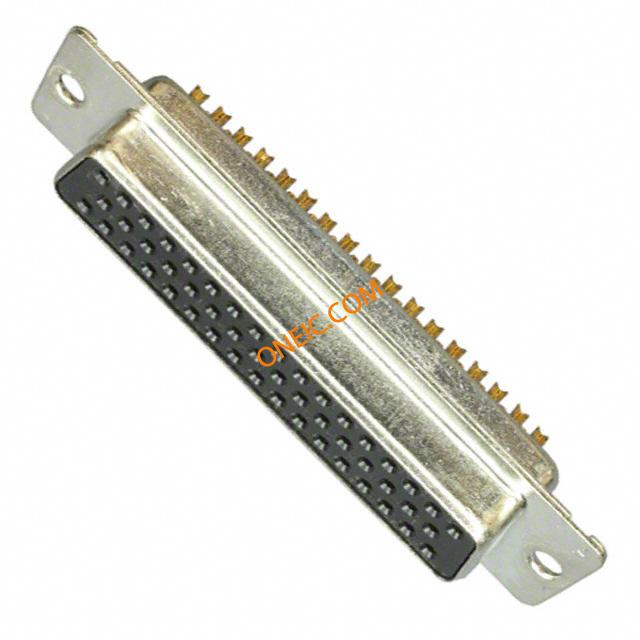

L77DD50S
| Manufacturer | |
| Description | Conn D-Subminiature SKT 50 POS 2.76mm Solder Cup ST Panel Mount 50 Terminal 1 Port CONN DSUB RCPT 50POS SLD CUP D SUB CONNECTOR, STANDARD, 50POS, RCPT |
| Category |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :AMPHENOL - 17D Series | 额定电压 | 300V |
| 最大额定电流 | 7.5A | ||
机械参数
| 颜色 | Black | 间距 | 2.76 mm |
| 重量 | 0.018 | 包装方式 | Bulk |
| 外壳尺寸 | :DD | 端接方式 | Solder Cup |
| 触头类型 | Signal | 基体材料 | :Steel |
| 安装类型 | Panel Mount | 连接器类型 | Receptacle, Female Sockets |
| 接触镀层 | Gold | 法兰特征 | Housing/Shell (Unthreaded) |
| 排数 | 3 | 连接器样式 | D-Sub |
| 本体材料 | :Metal | 壳体材料 | Thermoplastic, Glass Filled |
| 触点数 | :50 | 接触件端接 | :Solder |
| 位数 | 50 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 3.9µin (0.10µm) | 外壳尺寸，连接器布局 | 5 (DD, D) |
产品信息
| 类型 | D-Subminiature | 连接器性别 | SKT |
| 系列 | :D | ||
环境参数
| 工作温度 | -55°C ~ 85°C | ||
