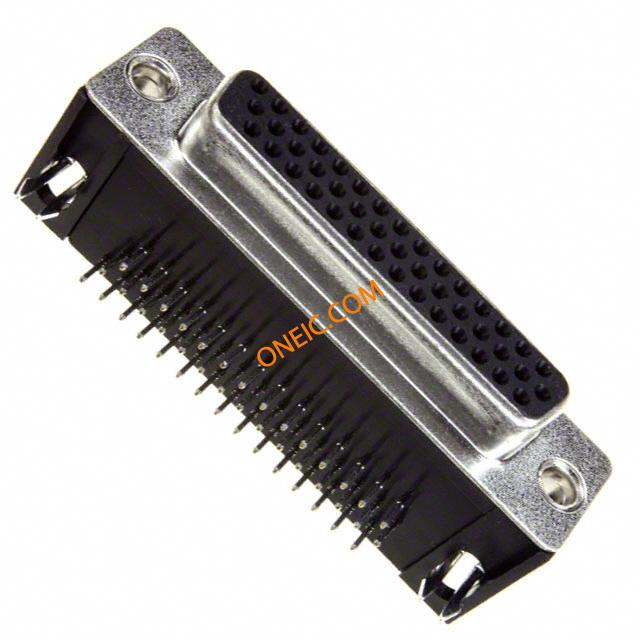

17EBH-044-S-AM-0-10
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 17EBH044SAM010 | Product Category | D-Sub High Density Connectors |
| Standard Package | 40 | Factory Pack Quantity | 40 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 3A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Number of Positions | 44 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size, Connector Layout | 3 (DB, B) High Density | ||
Product Info
| Features | Board Lock | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
Documents & Media
PDF Document
Sourcing & traceability
- Datasheet
- 17EBH044PXXXX0.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
