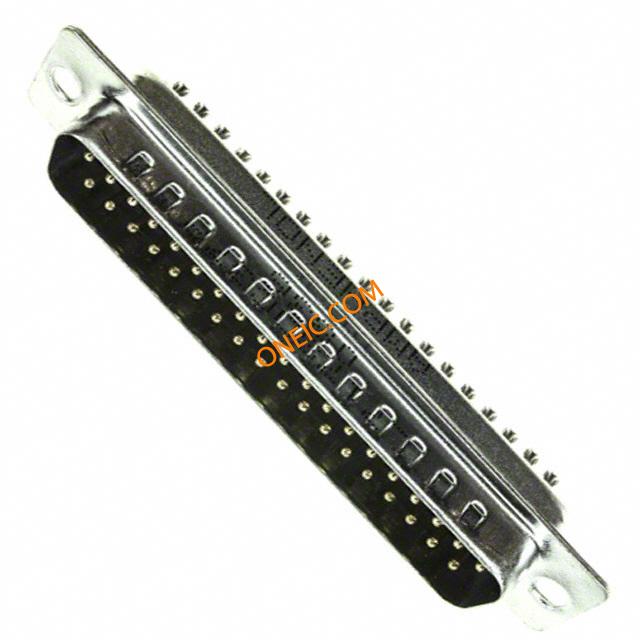

L717SDC37P
| Manufacturer | |
| Description | D-Sub Standard Connectors Male 37P solder cup tinned shell CONN D-SUB PLUG 37POS GOLD FLASH Solder cup D-Sub 37way plug Conn D-Subminiature PIN 37 POS 2.76mm Solder Cup ST Panel Mount 37 Terminal 1 Port D SUB CONNECTOR, STANDARD, 37POS, PLUG Conn; D-Sub; Plug; 37-Pin; L7 Series; Solder; Steel Shell D-Sub male 37P, L717SDC37P, Amphenol Amphenol 面板安装 DB37 37 路 焊接 D-sub 连接器 插头 , 5A |
| Category |
商业参数
| 零件号别名 | 01M1308 | 产品类别 | D-Sub Standard Connectors |
| 标准包装数量 | 40 | 工厂包装数量 | 40 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85366930 |
| 抗辐射加固 | No | ||
电气参数
| 量程（°/s） | :AMPHENOL - 17SD Series | 额定电压 | 250V |
| 最大额定电流 | 3 A | ||
机械参数
| 颜色 | Black | 深度 | 15.45mm |
| 间距 | 2.77 mm | 宽度 | 12.55mm |
| 高度 | 12.55 mm | 长度 | 69.4mm |
| 重量 | 0 | 包装方式 | Tube |
| 外壳尺寸 | C | 端接方式 | Solder Cup |
| 触头类型 | Signal | 基体材料 | :Steel |
| 安装类型 | Free Hanging (In-Line) | 外壳镀层 | Tin over Steel |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (Unthreaded) | 安装样式 | Panel |
| 排数 | 2 | 外壳材料（壳体） | Steel |
| 连接器样式 | D-Sub | 本体材料 | :Metal |
| 触头材料 | Brass | 壳体材料 | Thermoplastic, Glass Filled |

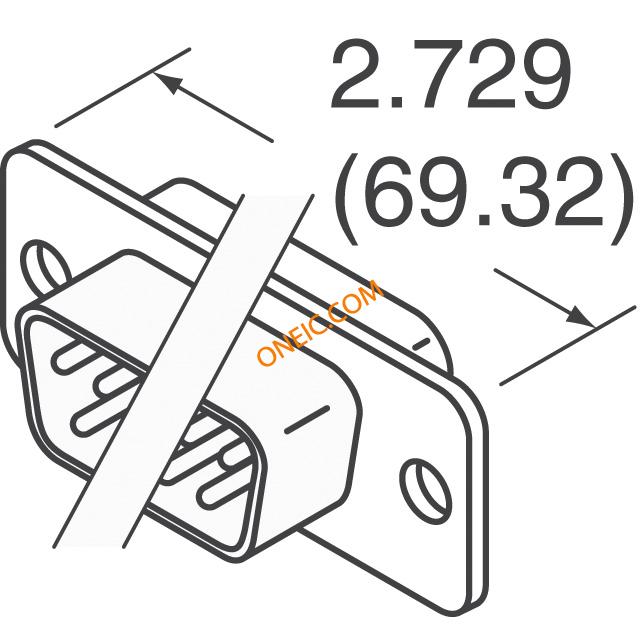

| 总长度 | 69.4 mm | 尺寸/外形 | 69.4 x 12.55 x 15.45mm |
| 端接样式 | Solder | 触点数 | 37 |
| 接触件端接 | :Solder | 位数 | 37 |
| 外壳材料及表面处理 | Steel, Tin Plated | 接触镀层厚度 | Flash |
| 外壳尺寸，连接器布局 | 4 (DC, C) | ||
产品信息
| 类型 | D-Subminiature | 连接器性别 | Male |
| 系列 | D-DF | 产品特性 | Grounding Indents |
| 端口数 | 1 Port | ||
环境参数
| 工作温度 | - 55 C to + 125 C | ||
