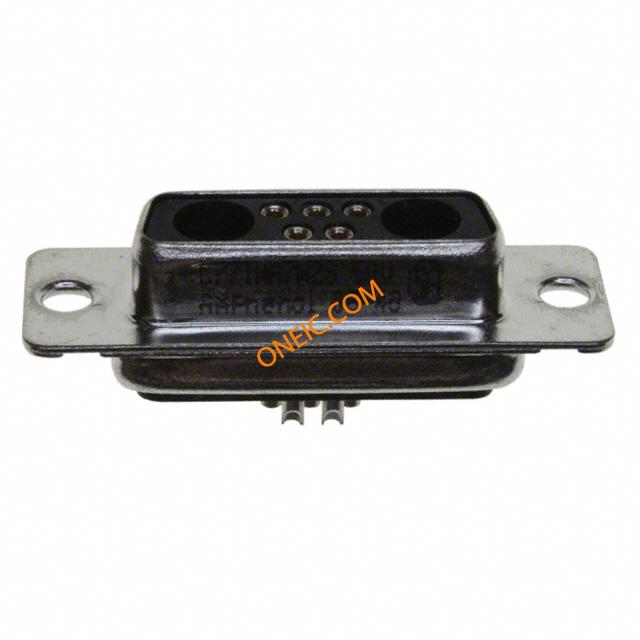

L77TWA7W2S
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 01M2605 33M8597 | Product Category | D-Sub Mixed Contact Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366910 |
Electrical
| Voltage Rating | 300 V | Current Rating (Max) | 7.5 A |
Mechanical
| Color | Black | Weight | 0.018 |
| Packaging | Bulk | Insulation | Insulated |
| Shell Size | A | Termination | Solder Cup |
| Weight (g): | 7.60000 | Contact Type | Power (Not Included) and Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub, Combo | Insertion Angle | :DA-7W2 |
| Material - Body | :Metal | Contact Material | Bronze |
| Housing Material | Thermoplastic | Termination Style | Solder |
| Number of Contacts | :7 | Contact Termination | :Solder |
| Insulation Material | Thermoplastic | Number of Positions | 7 (5 + 2 Power) |
| Shell Material, Finish | Steel, Tin Plated | Contact Layout, Typical | 7W2 |
| Contact Finish Thickness | 15µin (0.38µm) | Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
Product Info
| Gender | Female | Series | :TW |
Environmental
| Mating Cycles | :200 | Operating Temperature | -55°C ~ 155°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 360839.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
