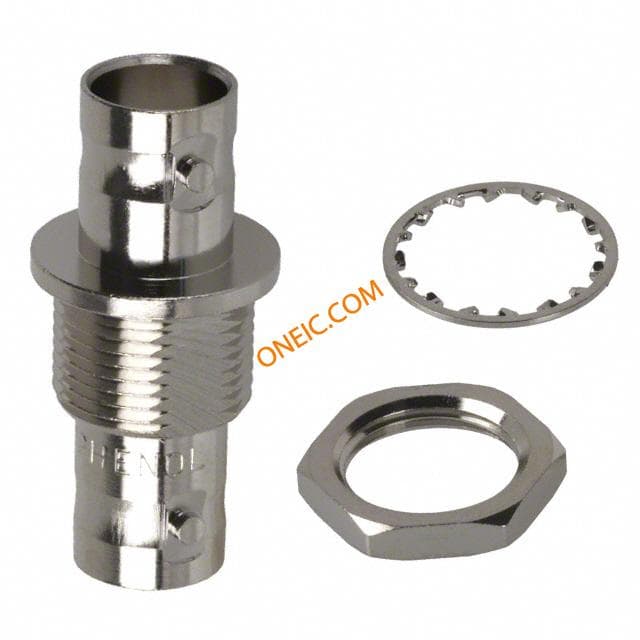

点击放大查看
对参数有疑问?问 AI 助手
Business
| Other Names | ACX1054 | Part # Aliases | 319-0048 99H4395 |
| Product Category | RF Adapters - In Series | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Conversion Type | Same Series | Frequency - Max | 4GHz |
| Frequency Range | DC to 4 GHz | ||
Mechanical
| Depth | 16 | Weight | 0.534753 oz |
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Straight | Body Material | Brass |
| Mounting Type | Panel Mount | Shell Plating | Nickel |
| Connector Type | :Intra Series Coaxial | Contact Finish | Gold |
| Plating - Body | Nickel | Contact Material | Phosphor Bronze |
| Length - Overall | 32.5 | Dielectric Material | Polyoxymethylene (POM) Acetal |
| Insulation Material | Delrin | 1st Connector Gender | Jack (Female) |
| 2nd Connector Gender | Jack (Female) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | Bulkhead |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Jack |
| 2nd Connector Mounting Feature | Normal | ||
Product Info
| Type | BNC Adapter | Style | Straight |
| Gender | F/F | Series | :- |
| Adapter Type | Jack to Jack | Center Gender | Female to Female |
| Adapter Series | BNC to BNC | RF Family/Standard | BNC |
| Convert To (Adapter End) | BNC Jack, Female Socket | Convert From (Adapter End) | BNC Jack, Female Socket |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- 112437.pdf
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
