Business
| Other Names | ACX1060 | Part # Aliases | 319-0054 92H4687 |
| Product Category | RF Adapters - In Series | Standard Package | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85369010 | ||
Electrical
| Frequency | 0 to 4G | Impedance | 50 Ohm |
| Voltage Rating | 500 V | Conversion Type | Same Series |
| Frequency - Max | 4GHz | Frequency Range | DC to 4 GHz |
Mechanical
| Weight | 0.366144 oz | Diameter | 11 |
| Packaging | Bulk | Body Finish | Nickel |
| Orientation | Straight | Weight (g): | 12.00000 |
| Body Material | Brass | Mounting Type | Straight |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Connector Type | :Intra Series Coaxial | Contact Finish | Gold |
| Housing Finish | Nickel | Plating - Body | Nickel |
| Connector Usage | Bayonet | Contact Material | Phosphor Bronze |
| Housing Material | Brass | Length - Overall | 32.5 |
| Primary Material | Adapter | Dielectric Material | Polyoxymethylene (POM) Acetal |
| Insulation Material | Delrin | 1st Connector Gender | Jack (Female) |
| 2nd Connector Gender | Jack (Female) | Center Contact Plating | Gold |
| Center Contact Material | Phosphor Bronze | Supplier Device Package | :Straight Adapter |
| 1st Connector Mounting Type | Normal | 1st Connector Mounting Feature | :Jack |
| 2nd Connector Mounting Feature | Normal | ||
Product Info

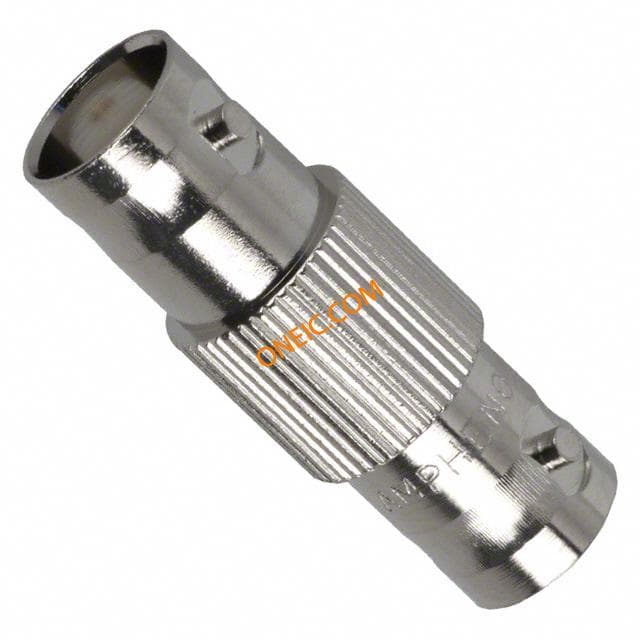

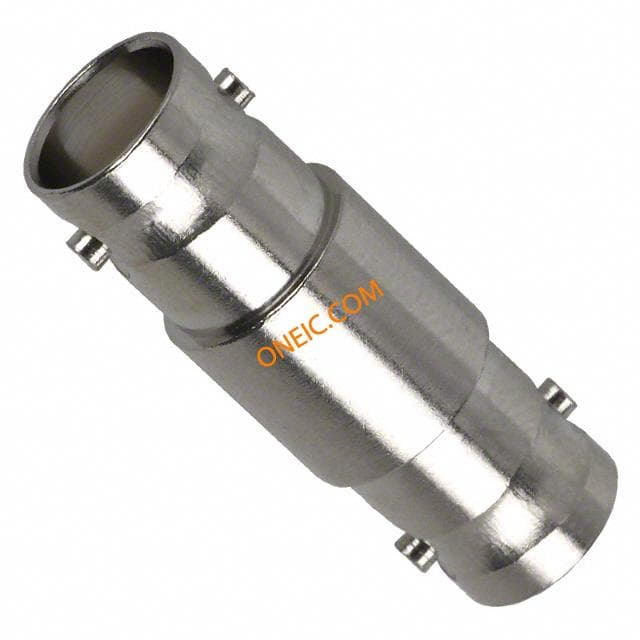

| Type | BNC Adapter | Style | Straight |
| Gender | RCP/RCP | Adapter Type | Jack to Jack |
| Center Gender | Female to Female | Adapter Series | BNC to BNC |
| RF Family/Standard | BNC | Application Specifics | Commercial |
| Convert To (Adapter End) | BNC Jack, Female Socket | Convert From (Adapter End) | BNC Jack, Female Socket |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- Adapter Matrix Brochure
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
