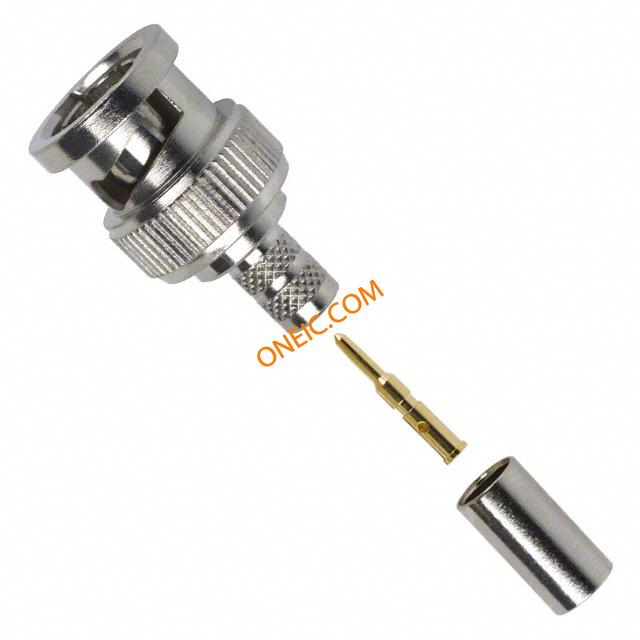

112533
| Manufacturer | |
| Description | Conn BNC PL 0Hz to 4GHz 50Ohm Crimp ST Cable Mount Gold CONN BNC PLUG STR 50 OHM CRIMP connector;rf coaxial;bnc str crimp plug;captive cont;for rg8x;LMR240cable;50ohm RF Connectors / Coaxial Connectors BNC STRAIGHT PLUG 8X/LMR240 RF/COAXIAL, BNC PLUG, STR, 50 OHM, CRIMP connector, rf coaxial, bnc str crimp plug, captive cont, for rg8x, LMR240cable, 50ohm |
| Category |
商业参数
| 产品 | Connectors | 其他名称 | ACX1014 |
| 零件号别名 | 319-0013 99H4448 | 产品类别 | RF Connectors / Coaxial Connectors |
| 标准包装数量 | Bag | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85366910 | ||
电气参数
| 频率 | 0 to 4 GHz | 阻抗 | 50 Ohm |
| 额定电压 | 500V | 耦合系数 | Bayonet |
| 最大频率 | 4GHz | ||
机械参数
| 重量 | 0.347096 oz | 直径 | 14.5 |
| 包装方式 | Bulk | 电缆类型 | RG-8X, Belden 7808A, LMR240 |
| 本体表面处理 | Nickel | 电缆组 | RG-8/X, LMR-240 |
| 方向 | Straight | 端接方式 | Crimp |
| 基体材料 | Brass | 外壳颜色 | Silver |
| 安装类型 | Cable Mount | 行程角度 | Straight |
| 连接器类型 | Plug, Male Pin | 接触镀层 | Gold |
| 紧固类型 | Bayonet Lock | 外壳涂层 | Nickel |
| 壳体镀层 | Nickel | 连接器样式 | BNC |
| 连接器用途 | Bayonet | 触头材料 | Brass |
| 壳体材料 | Brass | 总长度 | 25 |
| 主要材料 | BNC | 端接样式 | Cable - Crimp |
| 屏蔽层端接方式 | Crimp | 接触件端接 | Crimp |
| 介电材料 | Polyoxymethylene (POM) Acetal | 绝缘材料 - 类型 | Delrin |
| 中心触点镀层工艺 | Gold | 中心触点材料 | Brass |
| 供应商器件封装 | Straight | ||
产品信息
| 类型 | BNC | 连接器性别 | PL |
| 产品特性 | Captivated Contact | 极性 | Standard |
| 连接类型 | Flexible Cable | 射频系列/标准 | 112533 |
| 应用细节 | Commercial | ||
