点击放大查看
122286
| Manufacturer | |
| Description | Conn TNC PL 0Hz to 4GHz 50Ohm RA Cable Mount Gold CONN TNC PLUG R/A 50 OHM SOLDER RF Connectors / Coaxial Connectors TNC R/A CLAMP PLUG RG58 LMR195 NICKEL TNC, TNC RT |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | ACX1847 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | Bag |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 0 to 4 GHz | Impedance | 50 Ohm |
| Voltage Rating | 500V | Coupling Factor | Threaded |
| Frequency - Max | 11GHz | ||
Mechanical
| Height | 25 | Weight | 1 oz |
| Packaging | Bulk | Cable Type | RG-58, RG-58A, RG-58C, RG-141, RG-303, LMR195, Belden 7806A |
| Body Finish | Nickel | Cable Group | RG-58, LMR-195 |
| Orientation | Right Angle | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Threaded | Plating - Body | Nickel |
| Connector Style | TNC | Contact Material | Brass |
| Length - Overall | 27.3 | Termination Style | Cable - Clamp |
| Shield Termination | Clamp | Contact Termination | Solder |
| Dielectric Material | Polyoxymethylene (POM) Acetal | Insulation Material | Delrin |
| Center Contact Plating | Gold | Center Contact Material | Brass |
| Supplier Device Package | Right Angle | ||
Product Info
| Type | TNC | Gender | PL |
| Polarity | Standard | Connection Type | Coaxial Cable |
| RF Family/Standard | TNC | ||
Environmental
| Mating Cycles | 500 | Ingress Protection | Weatherproof |
| Operating Temperature | - 40 C to + 155 C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
122486
amphenol connex
TNC JACK CAP AND CHAIN CONN CAP TNC FEMALE W/CHAIN connector accessory;rf coaxial;tnc female cap and 100 mm chain RF Connector Accessories TNC JACK CAP & CHAIN Coaxial/RF; Cap-w/Chain; TNC; Protective; Female; Brass; forMaleConnector; Straight
$30.9515
Details

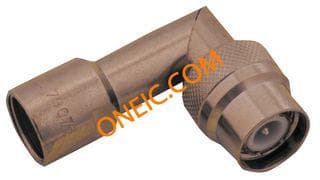

79075
