Business

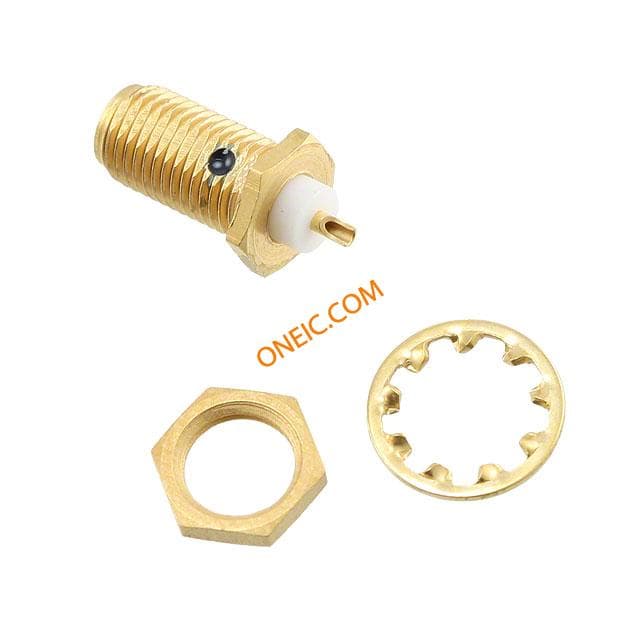

| Product | Connectors | Other Names | ACX1237 |
| Part # Aliases | 319-0180 | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85366910 | ||
Electrical
| Frequency | 0 to 18 GHz | Impedance | 50 Ohm |
| Coupling Factor | Threaded | Frequency - Max | 12.4GHz |
Mechanical
| Length | 0.682 in. | Weight | 0.081130 oz |
| Packaging | Bulk | Cable Type | :- |
| Body Finish | Gold | Orientation | Straight |
| Termination | Solder Pot | Body Material | Brass |
| Housing Color | Gold | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Connector Type | Jack, Female Socket |
| Contact Finish | Gold | Fastening Type | Threaded |
| Housing Finish | Gold | Plating - Body | Gold |
| Connector Style | SMA | Connector Usage | Threaded |
| Contact Material | Beryllium Copper | Housing Material | Brass |
| Length - Overall | 17.3 | Primary Material | SMA |
| Termination Style | Solder Cup | Shield Termination | Solder |
| Contact Termination | Solder Cup | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Polytetrafluoroethylene | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Supplier Device Package | Bulkhead |
Product Info
| Type | SMA | Gender | RCP |
| Features | Extended Insulation | Polarity | Standard |
| Connection Type | Coaxial Cable | RF Family/Standard | SMA |
| Application Specifics | Commercial | ||
Environmental
| Mating Cycles | 500 | Operating Temperature | -65°C ~ 165°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- SMA Connector Catalog
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
