172113
| Manufacturer | |
| Description | Conn Type N PL 0Hz to 11GHz 50Ohm Solder ST Cable Mount Gold CONN N PLUG STR 50 OHM CRIMP RF Connectors / Coaxial Connectors N STRAIGHT PLUG STANDARD CLAMP RF/COAXIAL, N PLUG, STR, 50 OHM, CLAMP N TYPE, N ST CLAMP PL RG-8/213/214 |
| Category |
Business
| Product | Connectors | Product Category | RF Connectors / Coaxial Connectors |
| Standard Package | Bag | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366910 |
Electrical
| Frequency | 0 to 11 GHz | Impedance | 50 Ohm |
| Voltage Rating | 1500V | Coupling Factor | Threaded |
| Frequency - Max | 11GHz | ||
Mechanical
| Weight | 1.808143 oz | Packaging | Bulk |
| Cable Type | RG-8, RG-8A, RG-213, RG-393 | Body Finish | White Bronze |
| Cable Group | RG-8, 213, 393 | Orientation | Straight |
| Termination | Solder | Body Material | Brass |
| Housing Color | Silver | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pin | Contact Finish | Gold |
| Fastening Type | Threaded | Connector Style | N Type |
| Contact Material | Brass | Termination Style | Cable - Clamp |
| Shield Termination | Clamp | Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | :Straight Plug |
Product Info
| Type | Type N | Gender | PL |
| Series | :- | Polarity | Standard |
| Connection Type | Flexible Cable | RF Family/Standard | 172113 |
Environmental
| Mating Cycles | 500 | Ingress Protection | Weatherproof |
| Operating Temperature | -65°C ~ 165°C | ||
Documents & Media
Similar Parts
172306
amphenol connex
Connector Accessories N Female Cap With Chain Brass Nickel Finish CONN N FEMALE CAP W/CHAIN connector accessory;rf coaxial;n series female cap and 100mm chain;for plugs RF Connector Accessories N JACK CAP AND CHAIN CHAIN CAP, TNC COAXIAL CONNECTOR Coaxial/RF; Cap-w/Chain; N; Protective; Female; Brass; forMaleConnector; Straight
8213 010500
Belden Wire & Cable
Coaxial Cables 14AWG 1C SHIELD 500ft SPOOL BLACK Cable Coax RG11 PE black 152m COAXIAL CABLE, RG-11/U, 75 OHM IMP., 14AWG SOLID, ANALOG VIDEO CABLE BLACK Coax - 75 Ohm Coax RG-11/U Type Coax Black Belden 152m长 黑色 聚乙烯 PE护套 RG11/U 同轴电缆, 10.287mm外径
8268 010500
Belden Wire & Cable
Coaxial Cables 13AWG STRANDED 500ft SPOOL BLACK COAXIAL CABLE, RG-214/U, 50 OHM IMP., 13AWG (7X21), MIL-C-17G M17/163-00001 BLAC Coax - 50 Ohm Coax M17/164-00001 Coax Black
47-20025
amphenol connex
Crimp Die, Standard Coax Dies Punches & Dies DIE 5 CAVITY MINI/UHF BNC/TNC DIE SET .255/.213/.100/.068/.052 DIE 5 CAVITY MINI/UHF BNC/TNC
47-10180
amphenol connex
Crimp Tool With Die Crimpers CRIMP TOOL W/DIE .255/.213/.100/.068 Hand Tools CRIMP TOOL W/DIE .255/.213/.100/.068 TOOL CRIMP .255/.213/.100/.068 tool;ratcheted hand crimp tool w/die set;cavities:.255;.213;.100;.068;.052(see) tool, ratcheted hand crimp tool w/die set, cavities:.255, .213, .100, .068, .052(see)
82-202-RFX
Amphenol RF

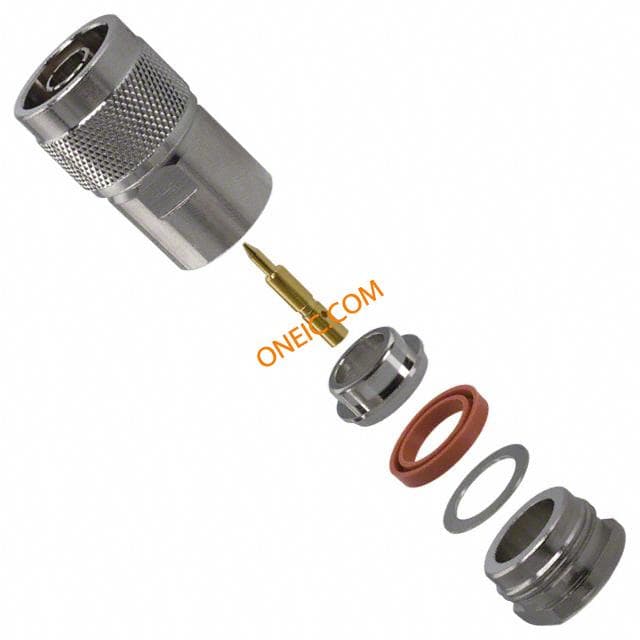

RF Connectors CLAMP PLUG CONN N PLUG STR 50 OHM SOLDER connector;rf coaxial;n commercial straight plug;clamp/solder;rg8;213;214;50 ohm RF Connectors / Coaxial Connectors CLAMP PLUG Conn Type N PL 0Hz to 11GHz 50Ohm Screw Clamp ST Cable Mount Gold RF/COAXIAL N PLUG STR 50 OHM CLAMP/SOLDER
