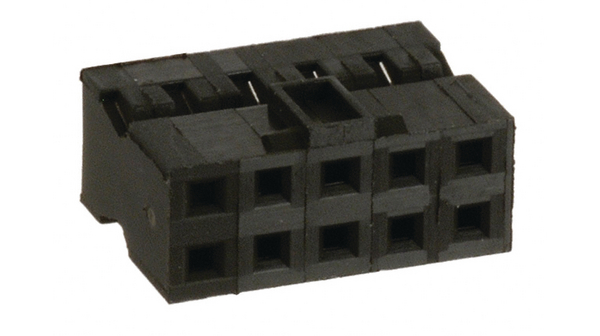

90311-010LF
| Manufacturer | |
| Description | CONN HOUSING 10POS 2MM W/KEY Socket housing, Minitek 2x5-pin 2 mm Poles 2 x 5 Minitek, 90311-010LF, Amphenol/FCI Amphenol FCI 90311 系列 2 行 2mm 节距 10 路 直 电缆安装 PCB 壳体 10P CRIMP TO WIRE HOUS. MINITEK |
对参数有疑问？问 AI 助手
Compliance
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 650 | Voltage Rating | 125 |
| Number of Poles | 2 x 5 | Contact Resistance | ≤20 mOhm |
| Current Rating (Max) | 2 A | Insulation Resistance | 1000 MOhm |
Mechanical
| Depth | 7mm | Pitch | 2 |
| Width | 4.5mm | Length | 10.4mm |
| Packaging | BAG | Orientation | 直 |
| Contact Type | 2.00 mm | Pitch - Post | FEMALE |
| Mounting Type | 电缆安装 | Number of Rows | 2 |
| Contact Material | Ni+Au | Housing Material | Thermoplastic |
| Number of Contacts | 10 | ||
Product Info
| Series | Minitek | CAD Drawing | 3D CAD 模型 |
| Connection Method | Wire-Board | For Use With/Related Products | Minitek 闭锁管座 |
Environmental
| Operating Temperature | -40...+105 °C | ||
