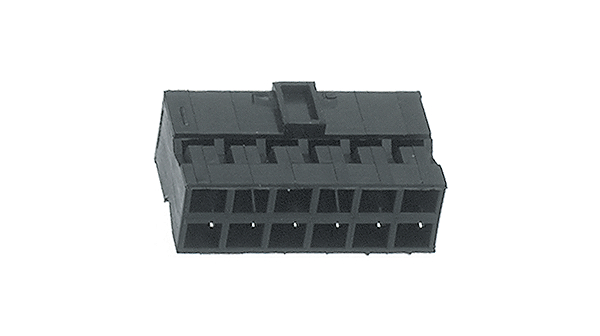

90311-012LF
| Manufacturer | |
| Description | CONN HOUSING 12POS 2MM W/KEY Socket housing, Minitek 2x6-pin 2 mm Poles 2 x 6 Minitek, 90311-012LF, Amphenol/FCI Amphenol FCI 90311 系列 2 行 2mm 节距 12 路 直 电缆安装 PCB 壳体 |
对参数有疑问？问 AI 助手
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 650 | Voltage Rating | 125 |
| Number of Poles | 2 x 6 | Contact Resistance | ≤20 mOhm |
| Current Rating (Max) | 2 A | Insulation Resistance | 1000 MOhm |
Mechanical
| Depth | 7mm | Pitch | 2 |
| Width | 4.5mm | Length | 12.4mm |
| Orientation | 直 | Mounting Type | 电缆安装 |
| Number of Rows | 2 | Contact Material | Ni+Au |
| Housing Material | Thermoplastic | Number of Contacts | 12 |
Product Info
| Series | Minitek | CAD Drawing | 3D CAD 模型 |
| Connection Method | Wire-Board | For Use With/Related Products | Minitek 闭锁管座 |
Environmental
| Operating Temperature | -40...+105 °C | ||
