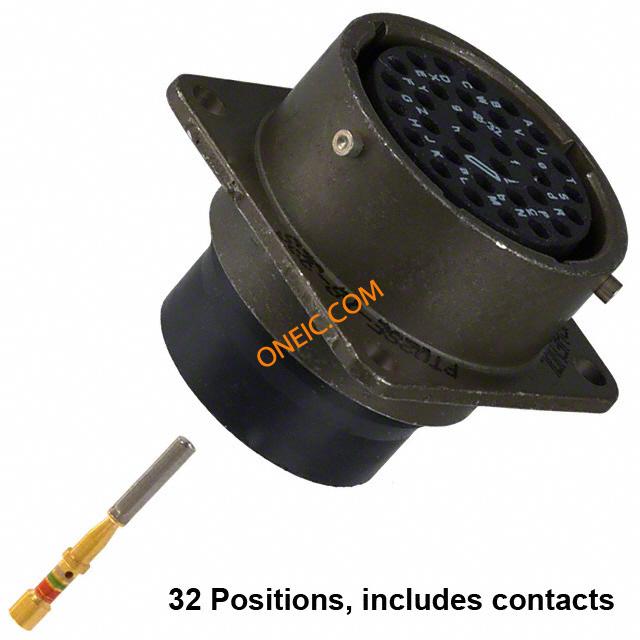

PT02SE18-32S(025)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT02SE1832S025 | Standard Package | 1 |
Compliance
| Tariff No | 85366930 | Approval Agency | :MIL-C-26482 Series I |
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Weight | 0.001 | Packaging | Bulk |
| Orientation | N (Normal) | Termination | Crimp |
| Weight (g): | 34.57000 | Mounting Type | Panel Mount, Flange |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Insertion Angle | :18-32 |
| Material - Body | :Aluminium | Contact Material | :Copper |
| 1st Contact Gender | :Socket | Number of Contacts | :32 |
| Contact Termination | :Crimp | Number of Positions | 32 |
| Shell Size - Insert | 18-32 | Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated |
| 1st Connector Mounting Type | :Panel | ||
Product Info
| Gender | :Socket | Series | :PT |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
.JPG&w=3840&q=75)
Sourcing & traceability
- Datasheet
- MIL-C-26482, Series 1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
