点击放大查看

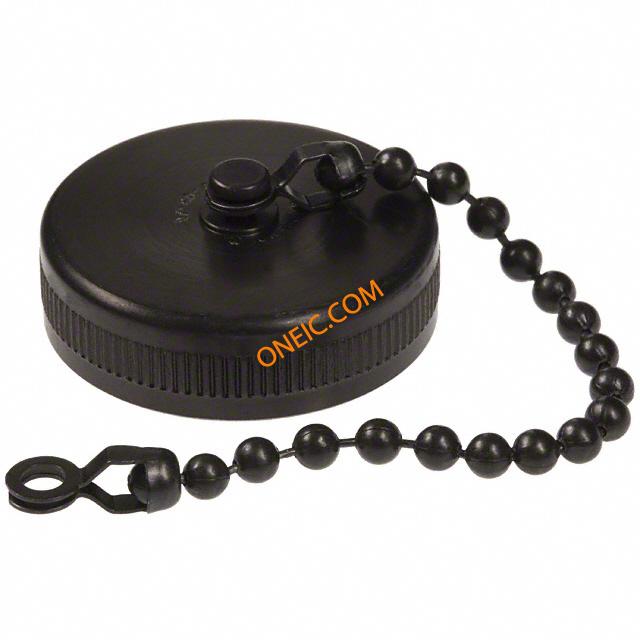

97-60-24(621)
| Manufacturer | |
| Description | Circular MIL Spec Tools, Hardware & Accessories RECPT. CAP 24 BLACK ZINK COBALT CONN CAP FOR SIZE 24 RECEPT Connector Accessories Metal Protection Cap Bead Chain For Receptacle Black Zinc Alloy connector accessory, metal prot cap w/bead chain, for size 24 recept, black zinc |
| Category |
商业参数
| 其他名称 | 976024621 | 零件号别名 | C10-823958-024 |
| 产品类别 | Circular MIL Spec Tools, Hardware & Accessories | 标准包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | MIL类型 | MIL-DTL-5015 |
机械参数
| 颜色 | Black | 镀层 | Black Zinc Alloy |

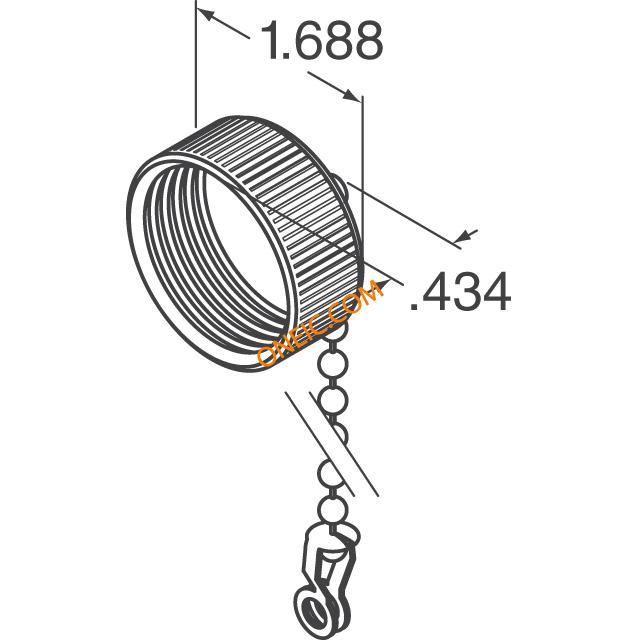

| 直径 | 42.85 mm | 材料（通用） | Zinc Alloy |
| 安装类型 | Straight | 总长度 | 11.1 mm |
| 外壳尺寸-插件 | 24 | ||
产品信息
| 类型 | Cap | 系列 | 97 |
| 产品特性 | Metal Chain | 产品子类型 | Dustcaps |
| 附件类型 | Cap (Cover) | 适用产品/相关产品 | MS31xx and 97 Series Receptacle Connectors |
环境参数
| 工作温度 | -55C to 125C | ||
