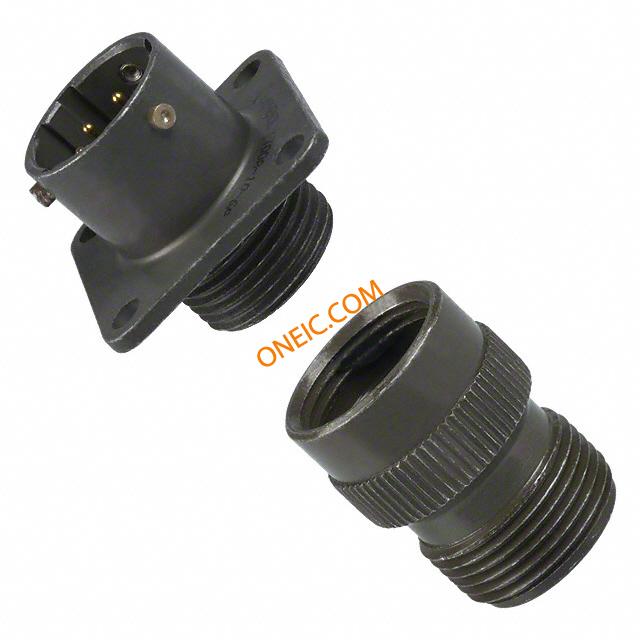

PT00A-10-6P(025)
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-26482 |
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 10 |
| Orientation | N (Normal) | Shell Style | Wall Mount |
| Termination | Solder Cup | Mounting Type | Straight |
| Shell Plating | Non-Conductive Black Zinc | Connector Type | Receptacle, Male Pins |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Mounting Style | Panel | Shell Material | Aluminum Alloy |
| Insertion Angle | 10-6 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | 10-6 | Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated |
Product Info
| Series | PT | Product Type | Receptacles |
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
Sourcing & traceability
- Datasheet
- MIL-C-26482, Series 1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
