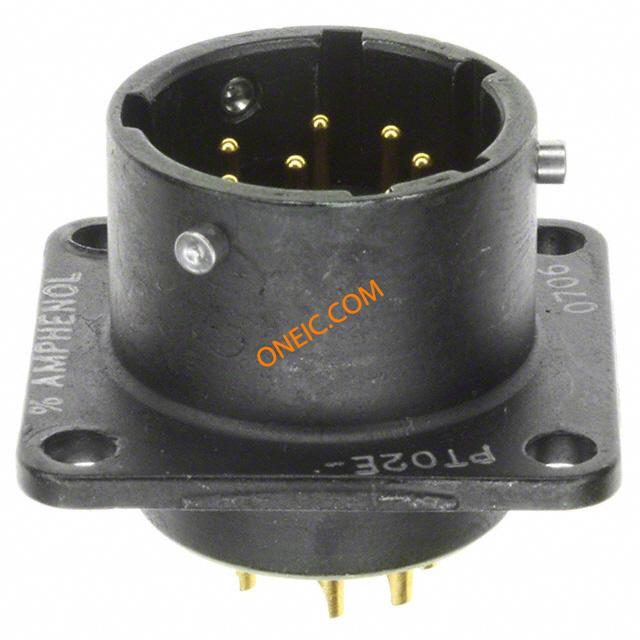

PT02E-12-8P(025)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT02E128P025 | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 20 | Orientation | N (Normal) |
| Shell Style | Box Mount | Termination | Solder Cup |
| Contact Type | pin contacts | Mounting Type | Straight |
| Shell Plating | Non-Conductive Black Zinc | Angle of Throw | Straight |
| Connector Type | Receptacle, Male Pins | Contact Finish | non-conductive black zinc cobalt |
| Fastening Type | Bayonet Lock | Housing Finish | Zinc Cobalt |
| Mounting Style | Panel | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | 12-8 | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 8 | Dielectric Material | Neoprene |
| Number of Positions | 8 | Shell Size - Insert | 12-8 |
| Mounting Hole Diameter | 0.12 " | Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated |
| Contact Layout, Typical | 8#20 | ||
Product Info
| Type | Panel Socket | Class | E |
| Series | PT | Features | 5 Key/Keyway Polarization |
| Manufacturer | PT Series | Product Type | Receptacles |
| Service Class | environmental resisting open wire seal with grommet and nut | Application Specifics | Commercial |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- MIL-C-26482, Series 1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
