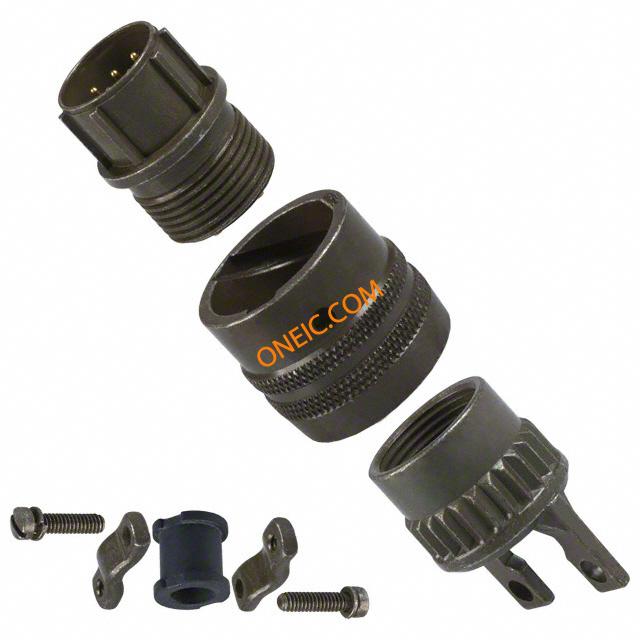

点击放大查看
PT06A-12-10P(470)
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | PT06A1210P470 | Product Category | Circular MIL Spec Connector |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-26482 |
| Approval Agency Marking | UL Recognized | ||
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Wire Gauge | 20 | Orientation | N (Normal) |
| Shell Style | In-Line | Termination | Solder Cup |
| Contact Type | Pin | Mounting Type | Straight |
| Shell Plating | Non-Conductive Black Zinc | Angle of Throw | Straight |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Zinc Cobalt |
| Mounting Style | Wire | Package / Case | Metal |
| Shell Material | Aluminum Alloy | Connector Usage | Bayonet |
| Insertion Angle | 12-10 | Housing Material | Aluminum |
| Primary Material | 26482 Commercial | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Mating Orientation | Bayonet |
| Number of Contacts | 10 | Dielectric Material | Neoprene |
| Number of Positions | 10 | Shell Size - Insert | 12-10 |
| Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated | Contact Layout, Typical | 10#20 |
Product Info
| Type | Cable Plug | Class | A |
| Series | PT | Features | Strain Relief |
| Manufacturer | PT Series | Product Type | Plugs |
| Application Specifics | Commercial | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
Documents & Media
Similar Parts
Sourcing & traceability
- Datasheet
- MIL-C-26482, Series 1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
