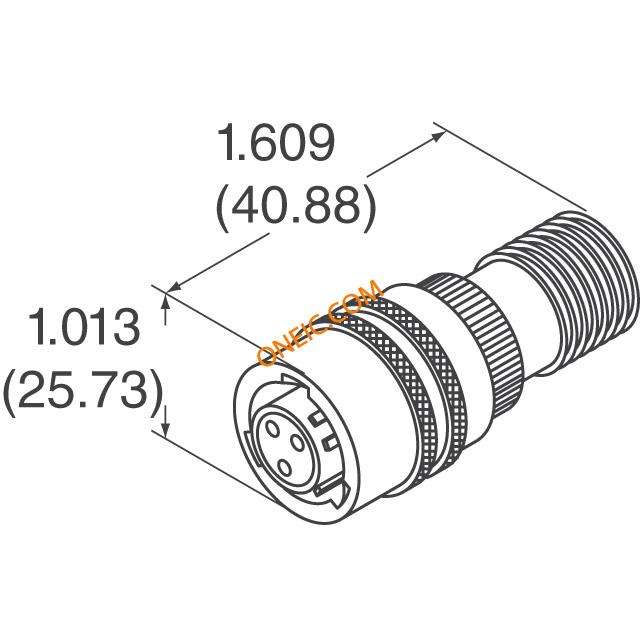

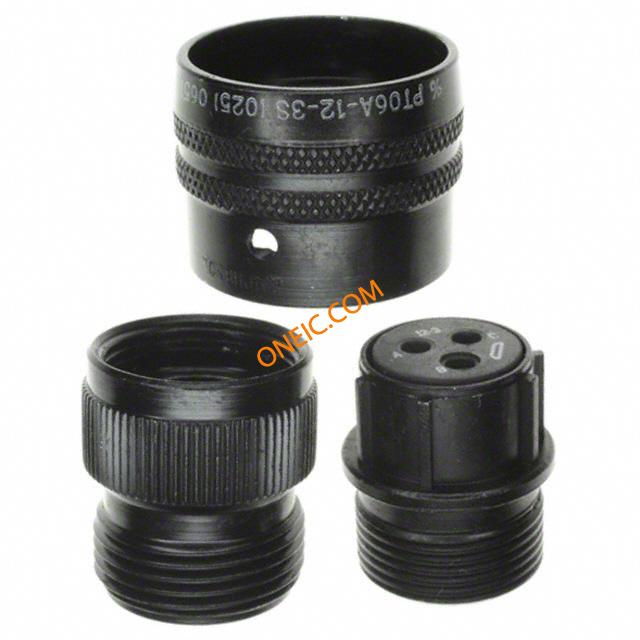

PT06A-12-3S(025)
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-26482 |
Electrical
| Voltage Rating | 1000VAC | Current Rating (Max) | 13A |
Mechanical
| Packaging | Bulk | Shell Size | 12 |
| Orientation | N (Normal) | Shell Style | In-Line |
| Termination | Solder Cup | Contact Type | socket contacts |
| Mounting Type | Straight | Shell Plating | Non-Conductive Black Zinc |
| Connector Type | Plug, Female Sockets | Contact Finish | non-conductive black zinc cobalt |
| Fastening Type | Bayonet Lock | Mounting Style | Wire |
| Shell Material | Aluminum Alloy | Insertion Angle | 12-3 |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Bayonet | Number of Contacts | 3 |
| Number of Positions | 3 | Shell Size - Insert | 12-3 |
| Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated | ||
Product Info
| Series | PT | Product Type | Plugs |
| Service Class | general duty back shell | ||
Environmental
| Operating Temperature | -55°C ~ 125°C | ||
