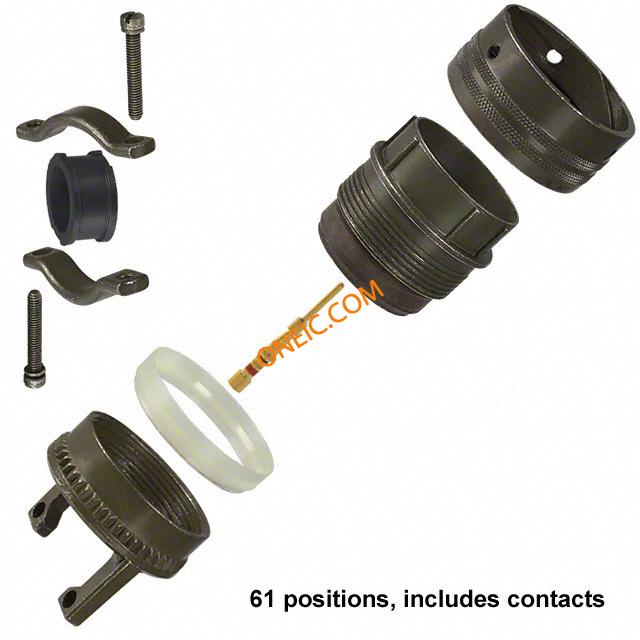

PT06SE-24-61P(470)
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Circular MIL Spec Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | MIL Type | MIL-DTL-26482 |
Electrical
| Voltage Rating | 600VAC | Current Rating (Max) | 7.5A |
Mechanical
| Packaging | Bulk | Shell Size | 24 |
| Orientation | N (Normal) | Shell Style | In-Line |
| Termination | Crimp | Contact Type | pin contacts |
| Mounting Type | Straight | Shell Plating | Non-Conductive Black Zinc |
| Connector Type | Plug, Male Pins | Contact Finish | non-conductive black zinc cobalt with strain relief |
| Fastening Type | Bayonet Lock | Mounting Style | Wire |
| Shell Material | Aluminum Alloy | Insertion Angle | 24-61 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Bayonet | Number of Contacts | 61 |
| Number of Positions | 61 | Shell Size - Insert | 24-61 |
| Shell Material, Finish | Aluminum, Black Zinc Cobalt Plated | ||
Product Info
| Series | PT | Features | Strain Relief |
| Product Type | Plugs | Service Class | environmental crimp |
Environmental
| Ingress Protection | Environment Resistant | Operating Temperature | -55°C ~ 125°C |
Documents & Media
PDF Document
PDF Document
Sourcing & traceability
- Datasheet
- MIL-C-26482, Series 1
Lot-level traceability (date code, original factory packaging) is confirmed on every quote and shipment.
