ELFH02250
| Manufacturer | |
| Description | Conn Shrouded Header HDR 2 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 2POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 2 Way 1 Row Vertical PCB Header, Solder Termination, 15A Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 2POS CLOSED Conn Shrouded Header HDR 2 POS 5.08mm Solder RA Thru-Hole Conn; Term Blk; PCB; 2; 5.08 mm; Vert.; Black; 15 A; 300 V |
| Category |
商业参数
| 产品 | Headers | 其他名称 | APC1242 |
| 零件号别名 | 308-0186 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 供电电压 | 300V |
| 最大额定电流 | 15A | 绝缘电阻 | 100000 MOhms |
| 最小供电电压 | 300V | ||
机械参数
| 颜色 | Black | 深度 | 12.06 mm |
| 间距 | 5.08 mm | 高度 | 8.1 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 接触镀层 | Tin-Lead | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 11.98 mm |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 2 | 位数 | 2 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | 每层极数 | 2 |
| 第二连接器安装特性 | Vertical | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | ELFH | 层数 | 1 |
| 每层位数 | 2 | 输出配置 | Through Hole |
环境参数
| 工作温度 | -40C to 105C | ||
Documents & Media
相关型号
ELFT02260
amphenol pcd
Conn Terminal Block F 2 POS 10.16mm Screw ST Cable Mount 15A TERM BLOCK PLUG 2POS 5.08MM Pluggable Terminal Blocks 2P Terminal Block Cable Mount
ELFF02220
amphenol pcd
FRONT/FRONT PLUG-BOTTOM ENTRY OFFSET TERM BLOCK PLUG 2POS 5.08MM
ELFB02280
amphenol pcd
MALE HEADER/BOARD-MOUNT PLUG, MODULAR Fixed Terminal Blocks Ver Board Mnt Plug .2 in 2 Pos. TERM BLOCK HDR 2POS VERT 5.08MM
ELFT02250
amphenol pcd
Conn Terminal Block F 2 POS 10.16mm Screw ST Cable Mount 15A TERM BLOCK PLUG 2POS 5.08MM

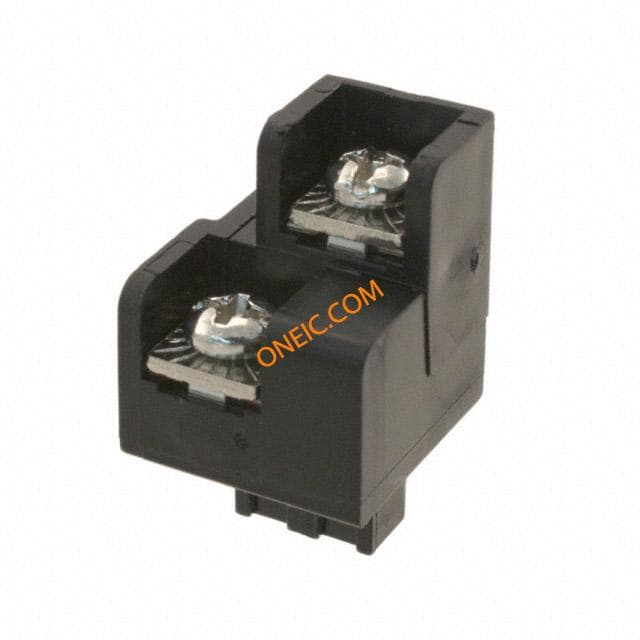

FXPT02200
