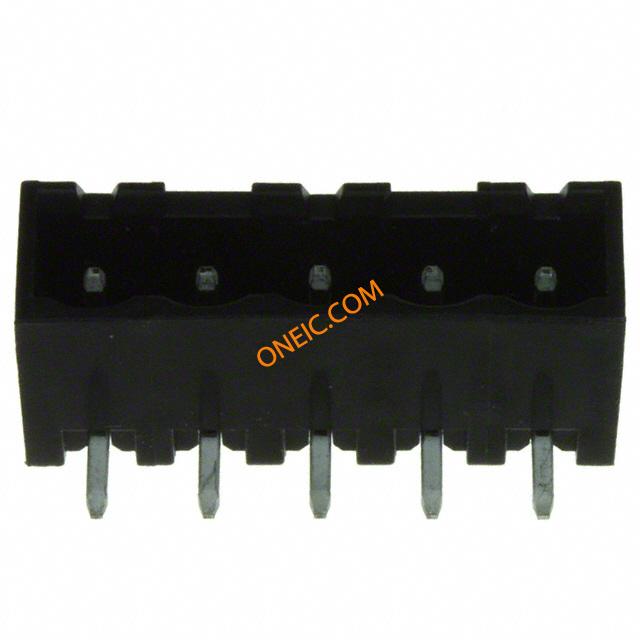

ELFH05210
| Manufacturer | |
| Description | Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole Pluggable Terminal Blocks HORIZONTAL HEADER 5.08MM 5POS CLOSED TERM BLOCK HDR 5POS R/A 5.08MM Amphenol ELFH Series 5.08mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Conn; Term Blk; PCB; 5; 5.08 mm; Black; 15 A; 300 V |
| Category |
商业参数
| 产品 | Headers | 其他名称 | APC1261 |
| 零件号别名 | 308-0178 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15 A |
| 绝缘电阻 | 100000 MOhms | 最小输入电压 | 300V |
机械参数
| 颜色 | Black | 深度 | 12.06 |
| 间距 | 5.08 mm | 高度 | 8.1 |
| 包装方式 | Bulk | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 接触镀层 | Tin-Lead | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 25.55 |
| 端接样式 | Screw | 排针方向 | 90°, Right Angle |
| 触点数 | 5 | 位数 | 5 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | ELFH | 层数 | 1 |
| 每层位数 | 5 | ||
