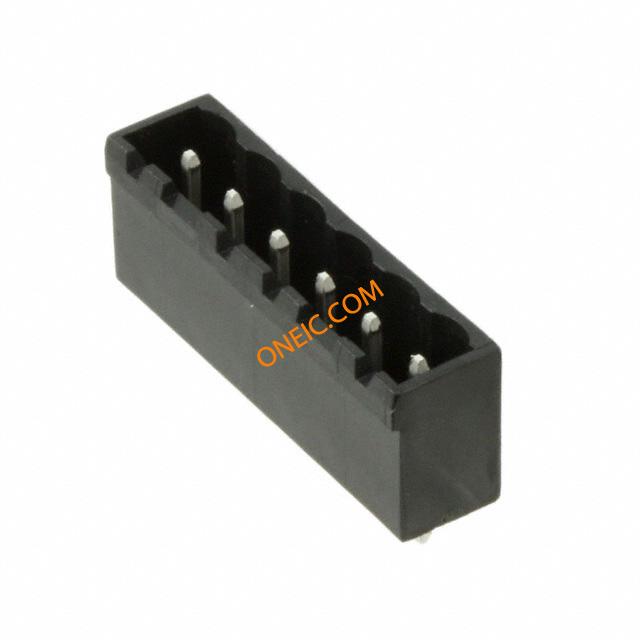

ELFH06250
| Manufacturer | |
| Description | Conn Shrouded Header HDR 6 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 6POS VERT 5.08MM Amphenol ELFH Series 5.08mm Pitch 6 Way 1 Row Vertical PCB Header, Solder Termination, 15A Pluggable Terminal Blocks VERTICAL HEADER 5.08MM 6POS CLOSED Conn; Term Blk; PCB; 6; 5.08 mm; Vert.; Black; 15 A; 300 V |
| Category |
商业参数
| 产品 | Headers | 其他名称 | APC1246 |
| 零件号别名 | 308-0190 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
机械参数
| 颜色 | Black | 间距 | 5.08 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 安装类型 | Through Hole | 接触镀层 | Tin-Lead |
| 排数 | 1 | 触头材料 | Brass |
| 端接样式 | Through Hole | 排针方向 | Vertical |
| 触点数 | 6 | 位数 | 6 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | ELFH | 层数 | 1 |
| 每层位数 | 6 | ||
