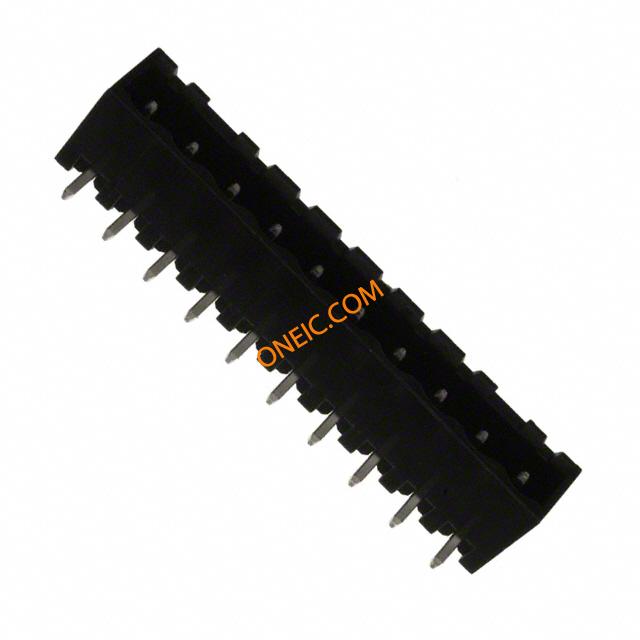

ELFH10210
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 5.08mm Solder RA Thru-Hole TERM BLOCK HDR 10POS R/A 5.08MM Amphenol ELFH Series 5.08mm Pitch 10 Way 1 Row Right Angle PCB Header, Solder Termination, 15A Pluggable Terminal Blocks HORIZONTAL HEADER 5.08MM 10P CLOSED Conn Shrouded Header HDR 10 POS 5.08mm Solder ST Thru-Hole Conn; Term Blk; PCB; 10; 5.08 mm; Horiz.; Black; 15 A; 300 V |
| Category |
商业参数
| 产品 | Headers | 其他名称 | APC1266 |
| 零件号别名 | 308-0183 | 产品类别 | Pluggable Terminal Blocks |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 电流 | 15A | 电压 | 300V |
| 额定电压 | 300 V | 最大额定电流 | 15A |
| 绝缘电阻 | 100000 MOhms | 最小供电电压 | 300V |
机械参数
| 颜色 | Black | 深度 | 8.1 mm |
| 间距 | 5.08 mm | 高度 | 12.06 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 接触镀层 | Tin-Lead | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 总长度 | 52.62 mm |
| 端接样式 | Through Hole | 排针方向 | 90°, Right Angle |
| 触点数 | 10 | 位数 | 10 |
| 接线端子类型 | Header, Male Pins, Shrouded (4 Side) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | ELFH | 层数 | 1 |
| 每层位数 | 10 | ||
环境参数
| 工作温度 | -40C to 105C | ||
Documents & Media
相关型号
ELFP10210
amphenol pcd
Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 15A Pluggable Terminal Blocks 10P R/A Plug .200 TERM BLOCK PLUG 10POS STR 5.08MM
ELFT10250
amphenol pcd
Conn Terminal Block F 10 POS 10.16mm Screw ST Cable Mount 15A Pluggable Terminal Blocks 10P Straight Plug Top Access .200 TERM BLOCK PLUG 10POS 5.08MM
ELFF10240
amphenol pcd
Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 15A Pluggable Terminal Blocks 10 POS BOTTOM ENTRY TERM BLOCK PLUG 10POS 5.08MM
ELFF10230
amphenol pcd

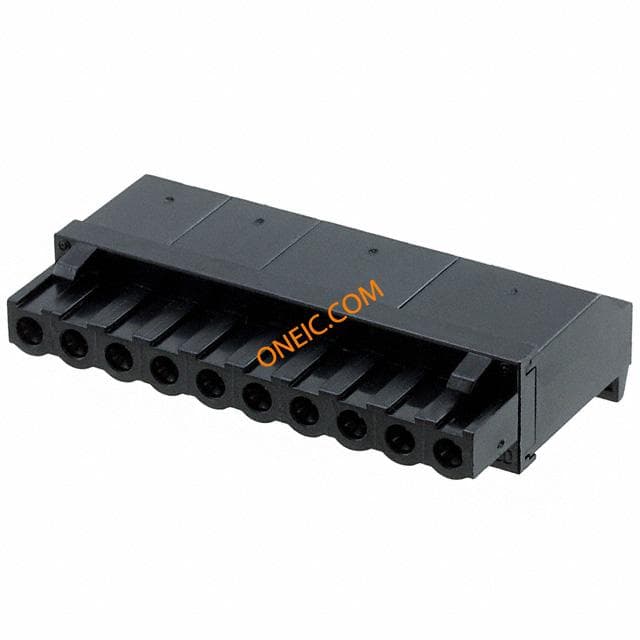

Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 10POS 5.08MM Pluggable Terminal Blocks Plug Top Entry 10 pos .2in Conn Terminal Blocks F 10 POS 5.08mm Screw ST Cable Mount 15A
ELFF10220
amphenol pcd
FRONT/FRONT PLUG-BOTTOM ENTRY OFFSET TERM BLOCK PLUG 10POS 5.08MM
ELFT10260
amphenol pcd
Conn Terminal Block F 10 POS 10.16mm Screw ST Cable Mount 15A TERM BLOCK PLUG 10POS 5.08MM
ELFB10280
amphenol pcd
MALE HEADER/BOARD-MOUNT PLUG, MODULAR Pluggable Terminal Blocks 10 POS BOARD-MOUNT VERTICAL TERM BLOCK HDR 10POS VERT 5.08MM
ELFK10210
amphenol pcd
Conn Terminal Block F 10 POS 5.08mm Screw Cable Mount 15A TERM BLOCK PLUG 10POS 5.08MM Pluggable Terminal Blocks 10 POS 45 DEG ANGLE
ELFB10230
amphenol pcd

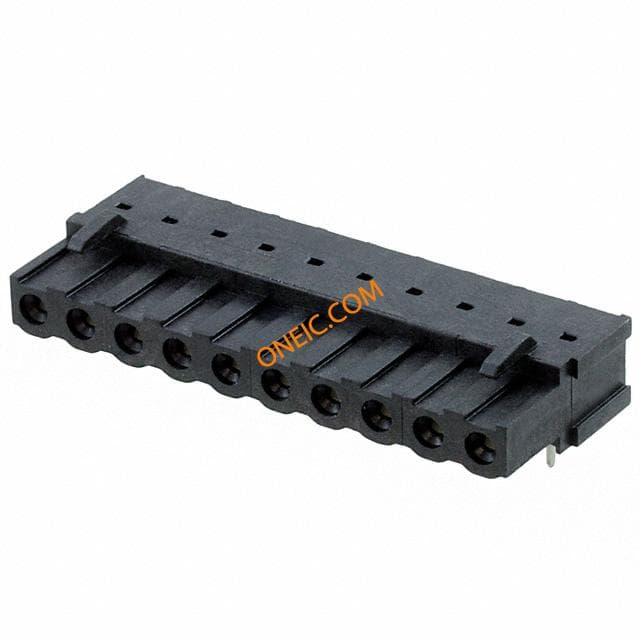

MALE HEADER/BOARD-MOUNT PLUG, MODULAR TERM BLOCK HDR 10POS R/A 5.08MM Pluggable Terminal Blocks 10 POS BOARD-MOUNT HORIZONTAL
FXPT10200
amphenol pcd

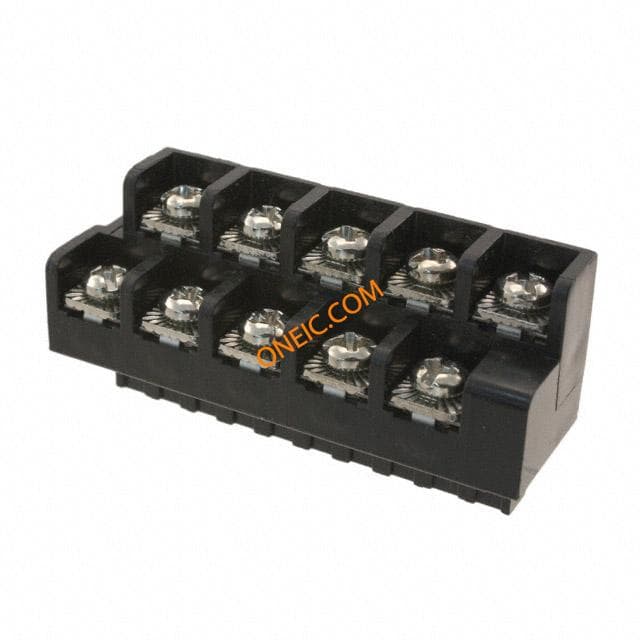

Conn Terminal Block F 10 POS 5.08mm Screw ST Cable Mount 15A TERM BLOCK PLUG 20POS 5.08MM Barrier Terminal Blocks FLEXIPLUG 5.08MM 10POS BLACK Conn; Term Blk; Plug; Screw; 10; 5.08 mm; 26-12 AWG; 15 A; 300 V
